IPC0155-S

IPC0155-S

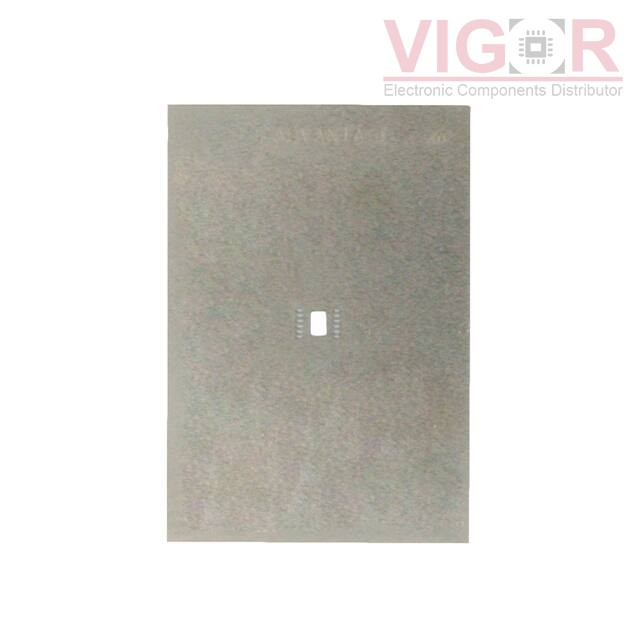

Image is for reference,
please contact us to get the real picture

Part No :

IPC0155-S

Manufacturer
Chip Quik, Inc.
Description
DFN-12 (0.4MM PITCH, 3X3MM BODY)
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
IPC0155-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0155-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0155-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:DFN
Number of Positions:12
Pitch:0.016" (0.40mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Thermal Center Pad:0.087" L x 0.066" W (2.20mm x 1.68mm)
Material:Stainless Steel
