IPC0158-S

IPC0158-S

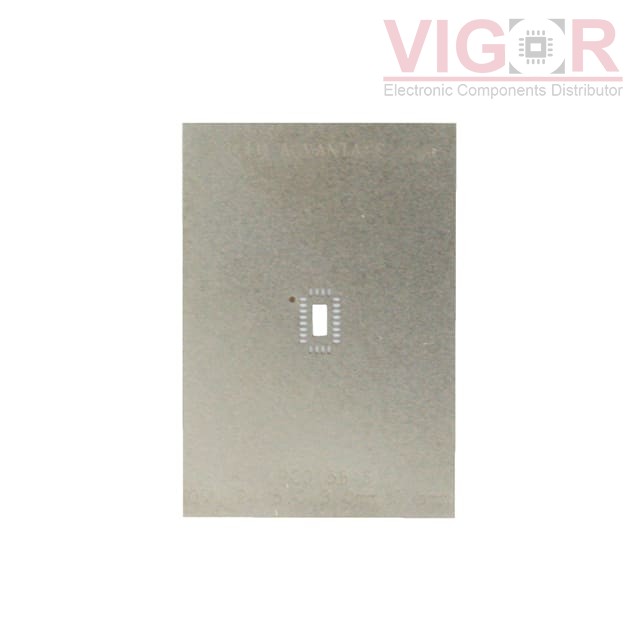

Image is for reference,
please contact us to get the real picture

Part No :

IPC0158-S

Manufacturer
Chip Quik, Inc.
Description
QFN-24/LFCSP-24 (0.5MM PITCH, 5X
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
IPC0158-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of IPC0158-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPC0158-S Specifications
Type Description
Series:Proto-Advantage IPC
Package:Bulk
Part Status:Active
Type:QFN/LFCSP
Number of Positions:24
Pitch:0.020" (0.50mm)
Outer Dimension:1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:0.197" L x 0.118" W (5.00mm x 3.00mm)
Thermal Center Pad:0.144" L x 0.065" W (3.65mm x 1.65mm)
Material:Stainless Steel
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
