PA0201-S

PA0201-S

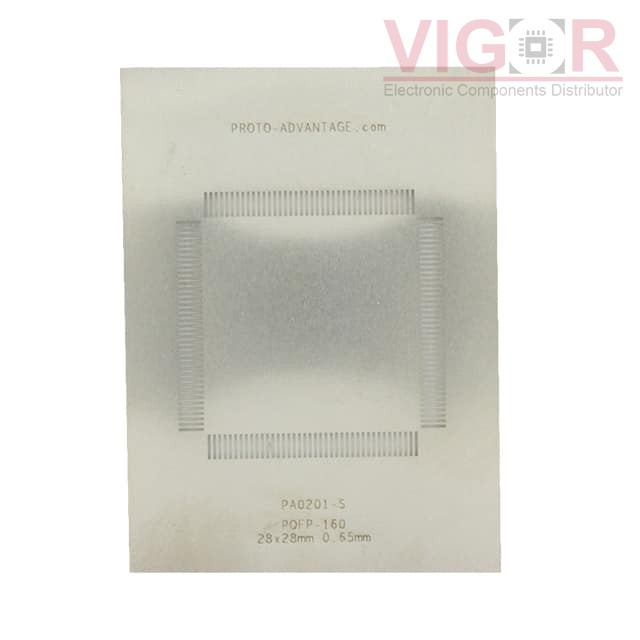

Image is for reference,
please contact us to get the real picture

Part No :

PA0201-S

Manufacturer
Chip Quik, Inc.
Description
PQFP-160 (0.65MM PITCH, 28X28MM
Catalog
Solder Stencils, Templates
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
PA0201-S PDF
Availability
0 pieces
Unit Price
$11.59000

Current price of PA0201-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0201-S Specifications
Type Description
Series:Proto-Advantage PA
Package:Bulk
Part Status:Active
Type:PQFP
Number of Positions:160
Pitch:0.026" (0.65mm)
Outer Dimension:2.600" L x 1.800" W (66.04mm x 45.72mm)
Inner Dimension:1.102" L x 1.102" W (28.00mm x 28.00mm)
Thermal Center Pad:-
Material:Stainless Steel
