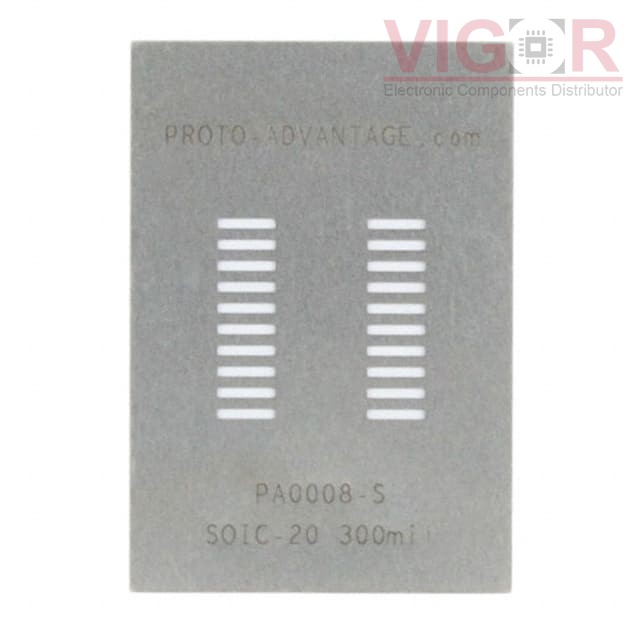

PA0008-S

Image is for reference,
please contact us to get the real picture

Part No :: PA0008-S

Manufacturer: Chip Quik, Inc.

Description: SOIC-20 STENCIL

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: PA0008-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0008-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0008-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	SOIC
Number of Positions:	20
Pitch:	0.050" (1.27mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	-
Thermal Center Pad:	-
Material:	Stainless Steel
