PA0241-S

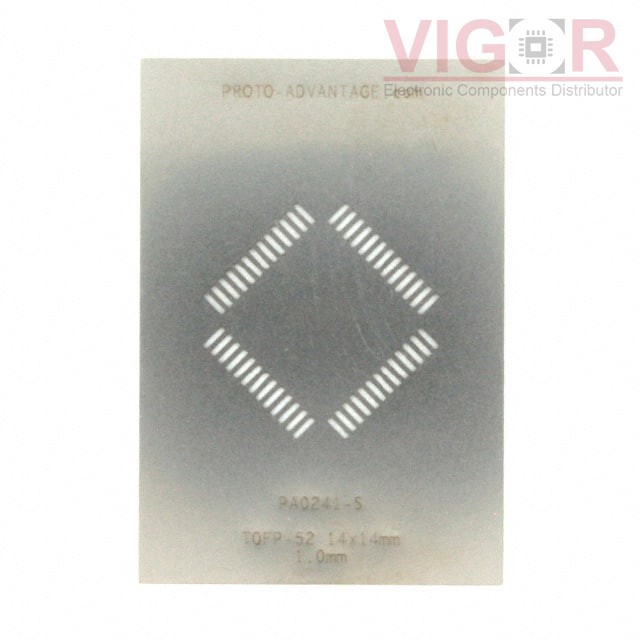

Image is for reference,
please contact us to get the real picture

Part No :: PA0241-S

Manufacturer: Chip Quik, Inc.

Description: TQFP-52 STENCIL

Catalog: Solder Stencils, Templates

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: PA0241-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0241-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0241-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	TQFP
Number of Positions:	52
Pitch:	0.039" (1.00mm)
Outer Dimension:	1.950" L x 1.350" W (49.53mm x 34.29mm)
Inner Dimension:	0.551" L x 0.551" W (14.00mm x 14.00mm)
Thermal Center Pad:	-
Material:	Stainless Steel
