EDSP02SGRNNTU04

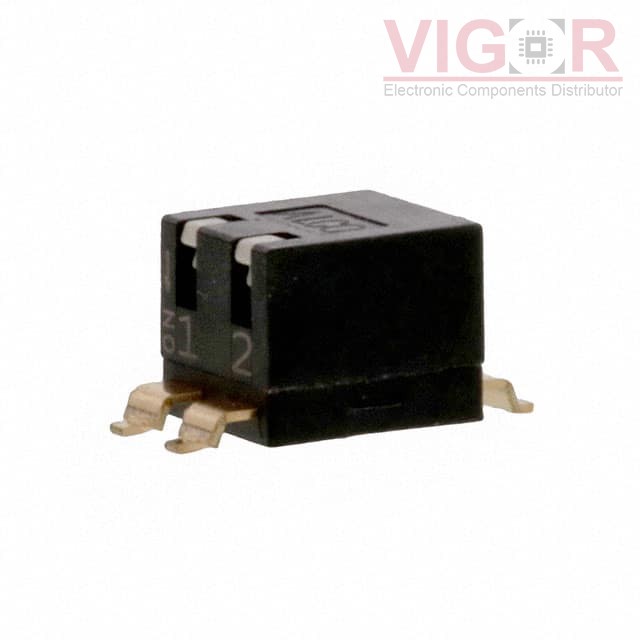

Image is for reference,
please contact us to get the real picture

Part No :: EDSP02SGRNNTU04

Manufacturer: TE Connectivity ALCOSWITCH Switches

Description: PIANO 2P G SHORT TUBE PD ON

Catalog: DIP Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 23 - Jul 27 2025

DataSheet: EDSP02SGRNNTU04 PDF

Availability: 1023 pieces

Unit Price: ~~$2.49000~~

Current price of EDSP02SGRNNTU04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EDSP02SGRNNTU04 Specifications

Type	Description
Series:	EDSP
Package:	Tube
Part Status:	Active
Circuit:	SPST
Number of Positions:	2
Current Rating (Amps):	25mA
Voltage Rating:	24VDC
Actuator Type:	Piano
Actuator Level:	Flush, Recessed
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.197" (5.00mm)
Mounting Type:	Surface Mount, Right Angle
Termination Style:	Gull Wing
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-20°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
