7814G-1-023E

7814G-1-023E

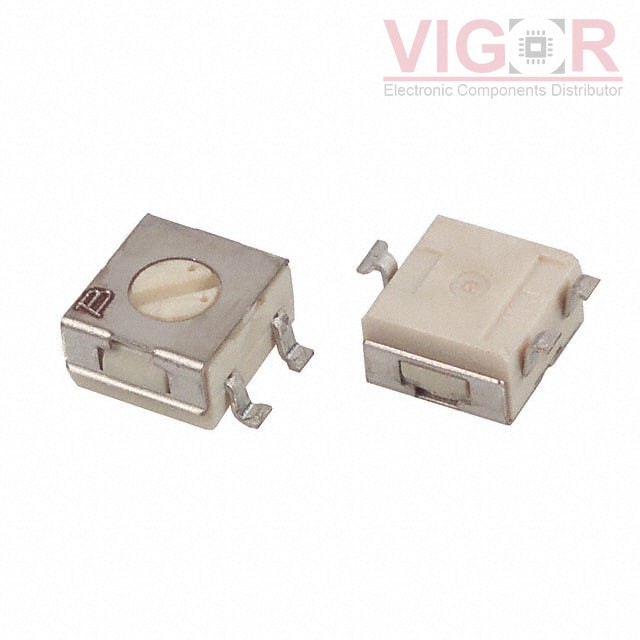

Image is for reference,
please contact us to get the real picture

Part No :

7814G-1-023E

Manufacturer
J.W. Miller / Bourns
Description
SWITCH ROTARY DIP SPDT 100MA 16V
Catalog
DIP Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
7814G-1-023E PDF
Availability
451 pieces
Unit Price
$1.65000

Current price of 7814G-1-023E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7814G-1-023E Specifications
Type Description
Series:7814
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPDT
Number of Positions:2
Current Rating (Amps):100mA
Voltage Rating:16VAC/DC
Actuator Type:Rotary for Tool
Actuator Level:Flush, Recessed
Contact Material:-
Contact Finish:-
Height Above Board:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination Style:Gull Wing
Pitch:-
Washable:No
Features:-
Operating Temperature:-55°C ~ 125°C
