MB00L1NZQF

MB00L1NZQF

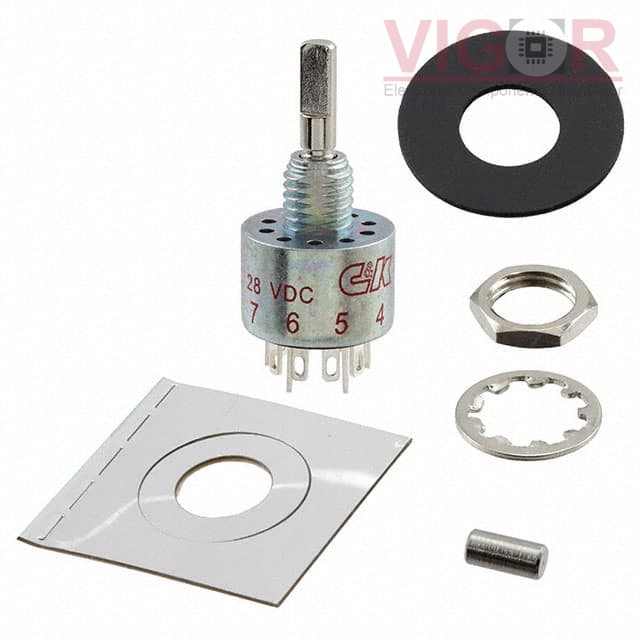

Image is for reference,
please contact us to get the real picture

Part No :

MB00L1NZQF

Manufacturer
C&K
Description
SWITCH ROTARY 5POS 250MA 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
MB00L1NZQF PDF
Availability
40 pieces
Unit Price
$20.29000

Current price of MB00L1NZQF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB00L1NZQF Specifications
Type Description
Series:M
Package:Tray
Part Status:Active
Number of Positions:5
Index Stops:Continuous
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Flatted (3.17mm Dia)
Actuator Length:10.16mm
Angle of Throw:36°
Contact Material:Copper Alloy
Contact Finish:Silver
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:IP67 - Dust Tight, Waterproof
Depth Behind Panel:14.86mm
