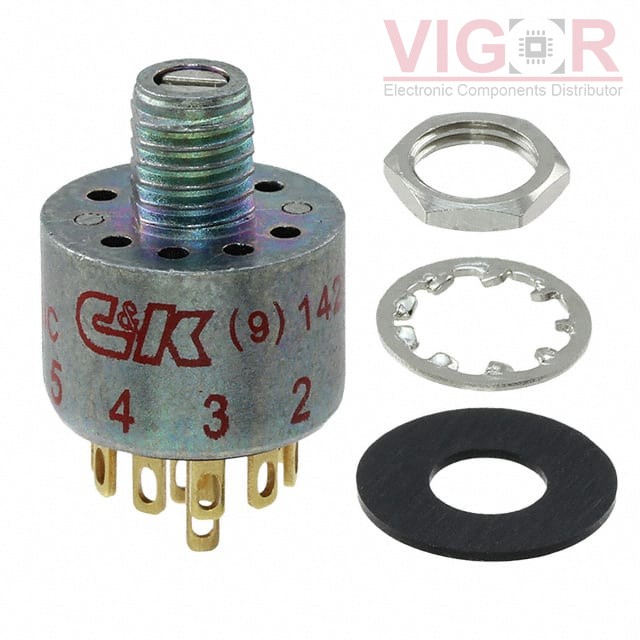

MB05L2NZGF

MB05L2NZGF

Image is for reference,
please contact us to get the real picture

Part No :

MB05L2NZGF

Manufacturer
C&K
Description
SWITCH ROTARY 5POS 250MA 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
MB05L2NZGF PDF
Availability
55 pieces
Unit Price
$22.25000

Current price of MB05L2NZGF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MB05L2NZGF Specifications
Type Description
Series:M
Package:Tray
Part Status:Active
Number of Positions:5
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP5T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):250mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:28 V
Actuator Type:Screwdriver Slot
Actuator Length:Flush
Angle of Throw:36°
Contact Material:Copper Alloy
Contact Finish:Gold
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:IP67 - Dust Tight, Waterproof
Depth Behind Panel:14.86mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 50CD36-01-1-AJN

50CD36-01-1-AJN

SWITCH ROTARY 2-10POS 150MA 115V

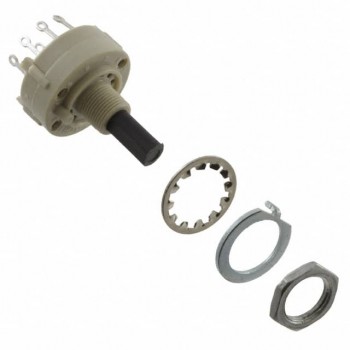

HOT KC14A13.002NLS

KC14A13.002NLS

SWITCH ROTARY 4POS 350MA 125V

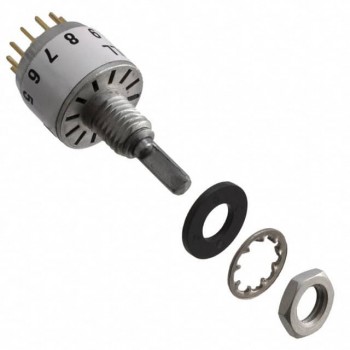

HOT 51DP30-01-1-AJN
