A20305RNZQ

A20305RNZQ

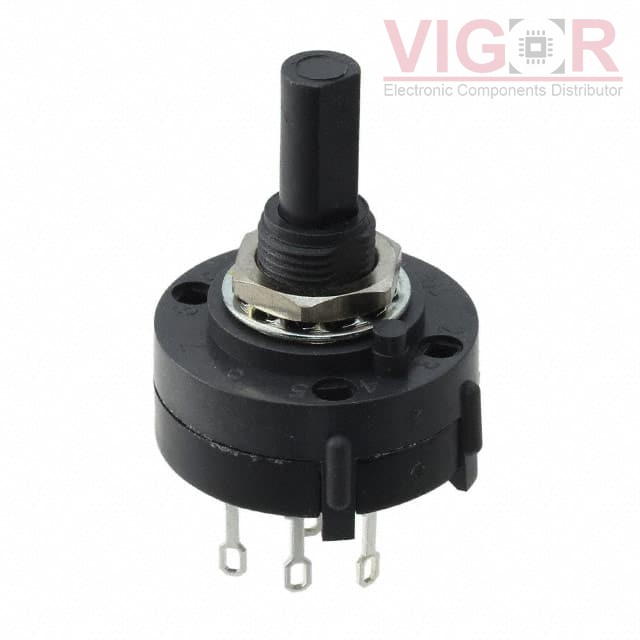

Image is for reference,
please contact us to get the real picture

Part No :

A20305RNZQ

Manufacturer
C&K
Description
SWITCH ROTARY 3POS 2.5A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
A20305RNZQ PDF
Availability
31 pieces
Unit Price
$8.16000

Current price of A20305RNZQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

A20305RNZQ Specifications
Type Description
Series:A
Package:Tray
Part Status:Active
Number of Positions:3
Index Stops:Fixed
Number of Decks:1
Number of Poles per Deck:2
Circuit per Deck:DP3T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):2.5A (AC), 350mA (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:125 V
Actuator Type:Flatted (6.35mm Dia)
Actuator Length:12.70mm
Angle of Throw:30°
Contact Material:Silver (Ag)
Contact Finish:Silver
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:20.83mm
