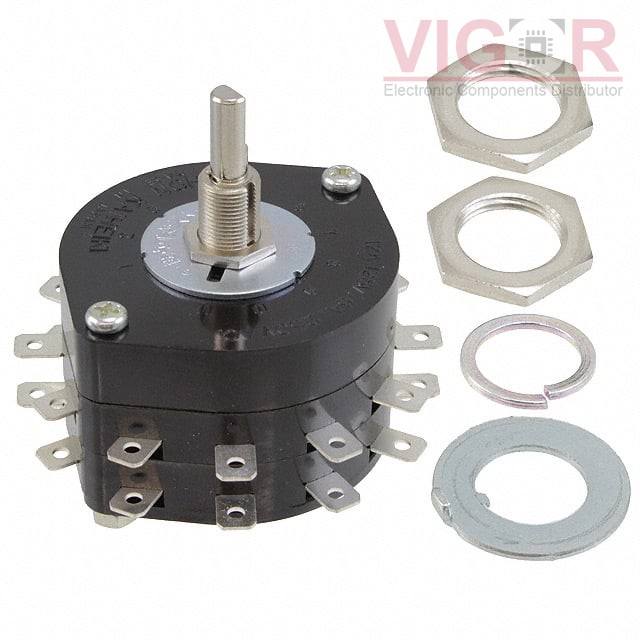

HS16-2SN

HS16-2SN

Image is for reference,
please contact us to get the real picture

Part No :

HS16-2SN

Manufacturer
NKK Switches
Description
SWITCH ROTARY 2-11POS 12A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
HS16-2SN PDF
Availability
18 pieces
Unit Price
$0.00000

Current price of HS16-2SN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HS16-2SN Specifications
Type Description
Series:HS
Package:Bulk
Part Status:Obsolete
Number of Positions:2 ~ 11
Index Stops:Adjustable
Number of Decks:2
Number of Poles per Deck:1
Circuit per Deck:SP11T
Contact Timing:Shorting (MBB)
Current Rating (Amps):12A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Flatted (6mm Dia)
Actuator Length:15.00mm
Angle of Throw:30°
Contact Material:Phosphor Bronze
Contact Finish:-
Mounting Type:Panel Mount
Termination Style:Solder Lug
Features:-
Depth Behind Panel:41.50mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MIL1112B12NSD25

MIL1112B12NSD25

SWITCH ROTARY 12POS 20MA 50V

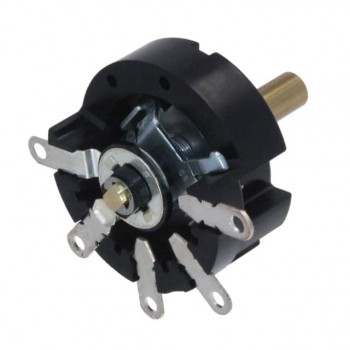

HOT HS13Z

HS13Z

SWITCH ROTARY 4POS 6A 125V

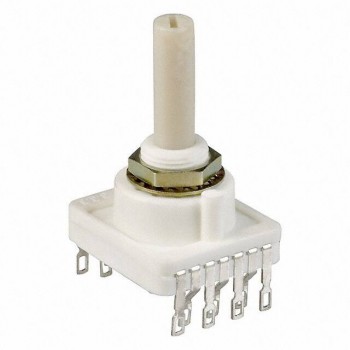

HOT RTAC30206B06AD25S
