TS5N

TS5N

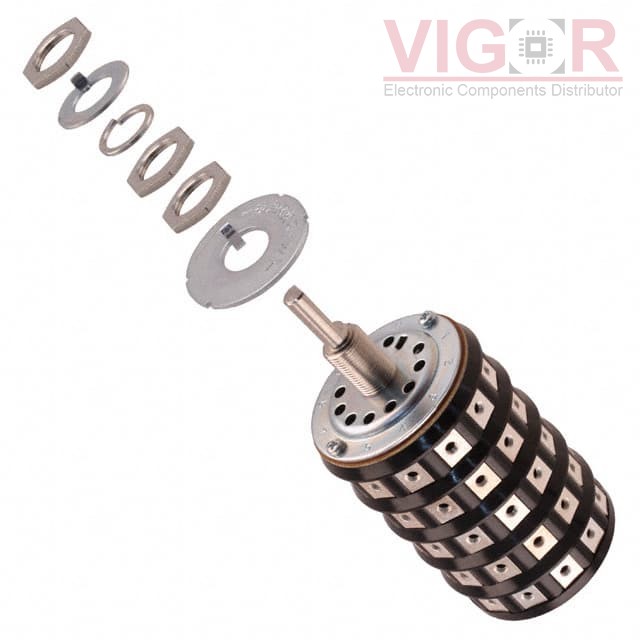

Image is for reference,
please contact us to get the real picture

Part No :

TS5N

Manufacturer
NKK Switches
Description
SWITCH ROTARY 2-11POS 6A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
TS5N PDF
Availability
10 pieces
Unit Price
$0.00000

Current price of TS5N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TS5N Specifications
Type Description
Series:TS
Package:Box
Part Status:Obsolete
Number of Positions:2 ~ 11
Index Stops:Adjustable
Number of Decks:5
Number of Poles per Deck:1
Circuit per Deck:SP11T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):6A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Flatted (6mm Dia)
Actuator Length:15.60mm
Angle of Throw:30°
Contact Material:Phosphor Bronze
Contact Finish:-
Mounting Type:Panel Mount
Termination Style:Screw Terminal
Features:-
Depth Behind Panel:70.00mm
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MIL2112SNAD25

MIL2112SNAD25

SWITCH ROTARY 12POS 20MA 50V
HOT 435128-1

435128-1

SWITCH ROTARY 10POS 125MA 115V
HOT HS16-1N

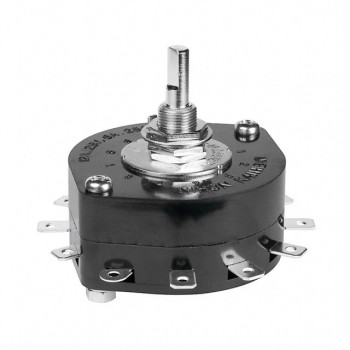

HS16-1N
