Type | Description |
---|---|
Series: | VM3S |
Package: | Tray |
Part Status: | Active |
Circuit: | SPDT |
Switch Function: | On-Mom |
Current Rating (Amps): | 10A (AC), 6A (DC) |
Voltage Rating - AC: | 125 V |
Voltage Rating - DC: | 36 V |
Actuator Type: | Lever, Simulated Roller |
Mounting Type: | Chassis Mount |
Termination Style: | Quick Connect - 0.187" (4.7mm) |
Ingress Protection: | IP67 - Dust Tight, Waterproof |
Features: | - |
Operating Force: | 200gf |
Release Force: | 180gf |
Pretravel: | 0.118" (3.0mm) |
Differential Travel: | 0.060" (1.5mm) |
Overtravel: | 0.024" (0.6mm) |
Operating Temperature: | -40°C ~ 120°C |

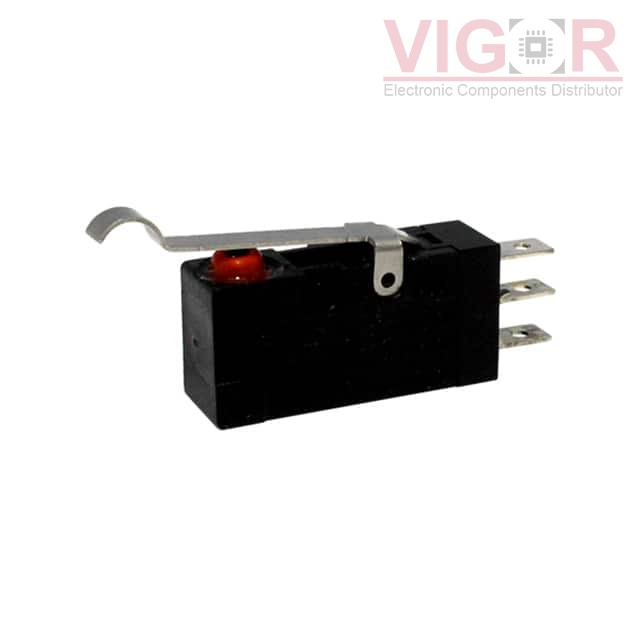

IP67 SNAP ACTION SWITCH, SPDT, G
