AV3820619

AV3820619

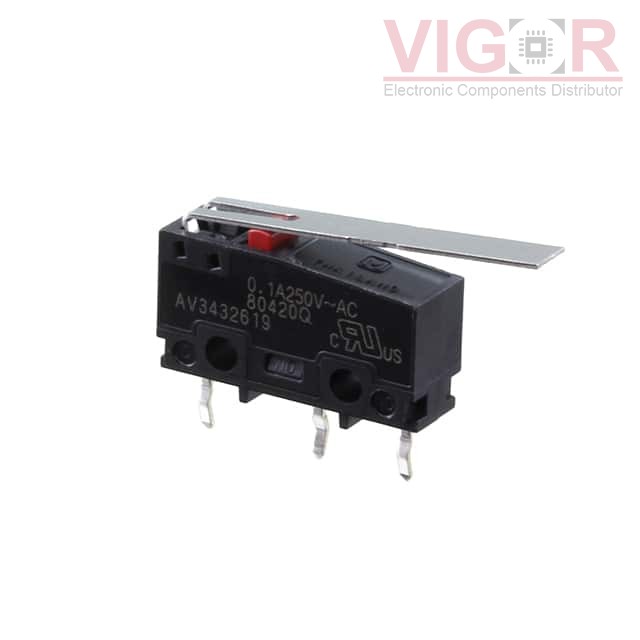

Image is for reference,
please contact us to get the real picture

Part No :

AV3820619

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
AV3820619 PDF
Availability
0 pieces
Unit Price
$1.62750

Current price of AV3820619 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AV3820619 Specifications
Type Description
Series:AV3
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Straight
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.110" (2.8mm)
Ingress Protection:-
Features:-
Operating Force:7.954gf
Release Force:0.306gf
Pretravel:0.110" (2.8mm)
Differential Travel:0.031" (0.8mm)
Overtravel:0.047" (1.2mm)
Operating Temperature:-25°C ~ 85°C
