AVL3800613-A

AVL3800613-A

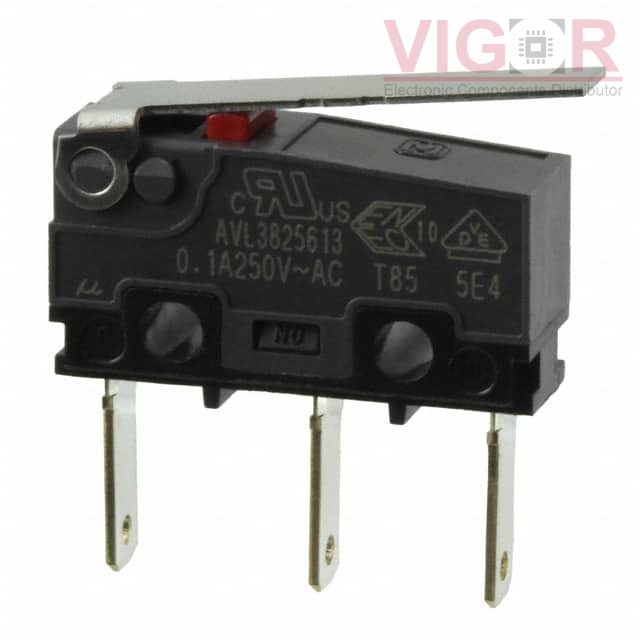

Image is for reference,
please contact us to get the real picture

Part No :

AVL3800613-A

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
AVL3800613-A PDF
Availability
0 pieces
Unit Price
$1.47400

Current price of AVL3800613-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AVL3800613-A Specifications
Type Description
Series:AVL3
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.110" (2.8mm)
Ingress Protection:-
Features:-
Operating Force:25gf
Release Force:2.039gf
Pretravel:0.024" (0.6mm)
Differential Travel:0.004" (0.1mm)
Overtravel:0.015" (0.4mm)
Operating Temperature:-25°C ~ 85°C
