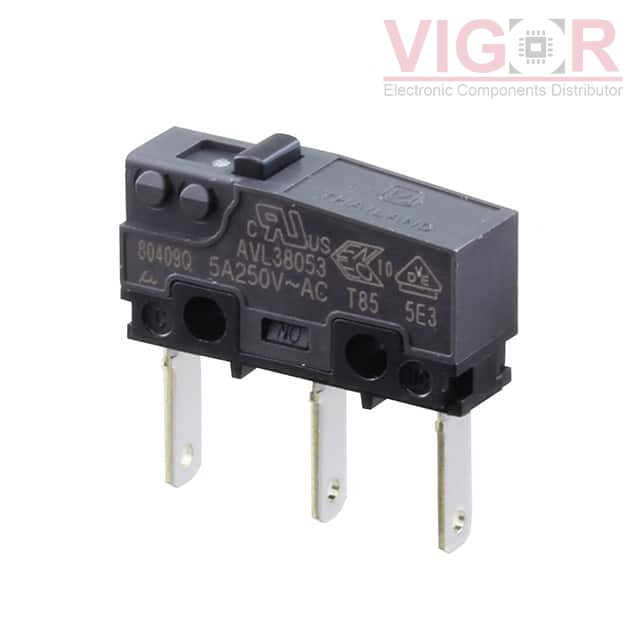

AVL38053-A

AVL38053-A

Image is for reference,
please contact us to get the real picture

Part No :

AVL38053-A

Manufacturer
Panasonic
Description
SWITCH SNAP ACTION SPDT 5A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
AVL38053-A PDF
Availability
77 pieces
Unit Price
$1.96000

Current price of AVL38053-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AVL38053-A Specifications
Type Description
Series:AVL3
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):5A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Quick Connect - 0.110" (2.8mm)
Ingress Protection:-
Features:-
Operating Force:150gf
Release Force:20gf
Pretravel:0.024" (0.6mm)
Differential Travel:0.004" (0.1mm)
Overtravel:0.015" (0.4mm)
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

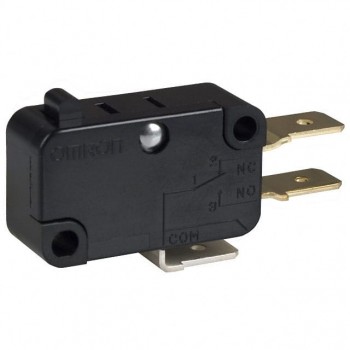

HOT V151C6KBYOMI

V151C6KBYOMI

SWITCH SNAP ACTION SPDT 15A 250V
HOT D2JW-01K21-MD

D2JW-01K21-MD

SWITCH SNAP ACT SPDT 100MA 30V

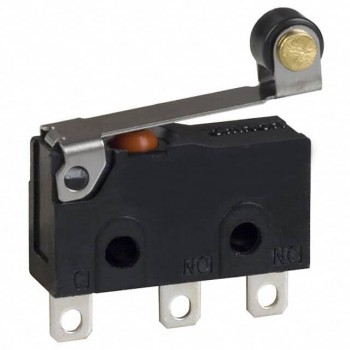

HOT D2SW-3L2H
