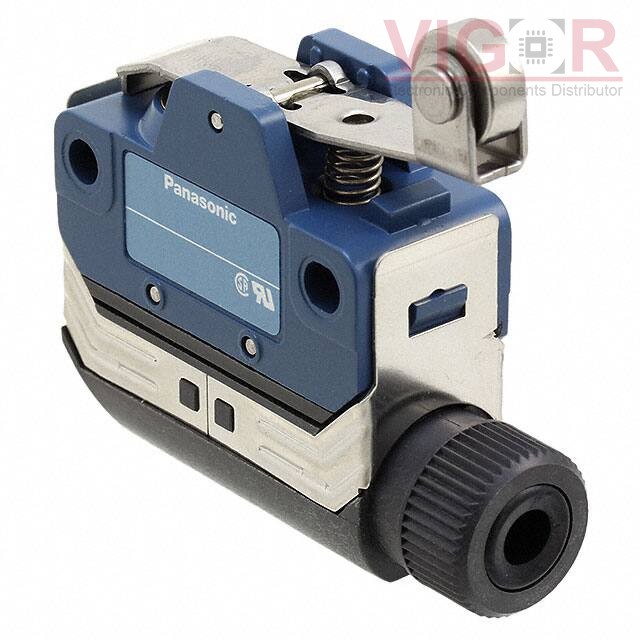

AZH2241

AZH2241

Image is for reference,
please contact us to get the real picture

Part No :

AZH2241

Manufacturer
Panasonic
Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
AZH2241 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AZH2241 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZH2241 Specifications
Type Description
Series:AZH
Package:Bulk
Part Status:Obsolete
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Roller
Mounting Type:Chassis Mount
Termination Style:Screw Terminal
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:-
Operating Force:400gf
Release Force:80gf
Pretravel:0.080" (2.0mm)
Differential Travel:0.012" (0.3mm)
Overtravel:0.158" (4.0mm)
Operating Temperature:-10°C ~ 80°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

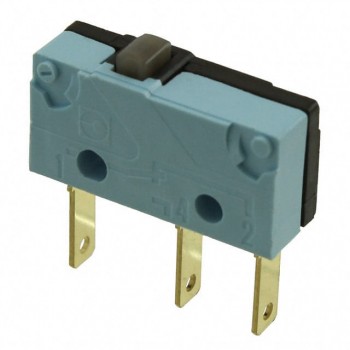

HOT 831708B1.0

831708B1.0

SWITCH SNAP SPST-NC 100MA 250V

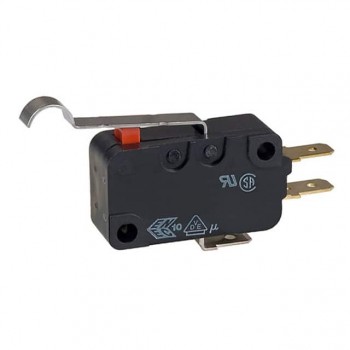

HOT D3V-164M-1C5

D3V-164M-1C5

SWITCH SNAP ACTION SPDT 16A 250V

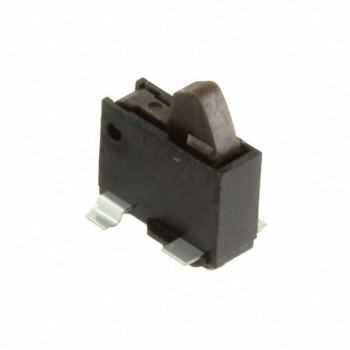

HOT ESE-22MV1
