EVQ-PCP05K

EVQ-PCP05K

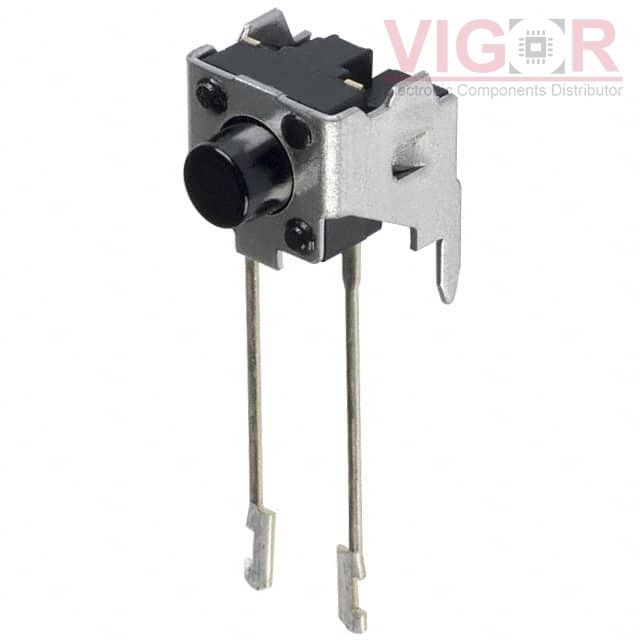

Image is for reference,
please contact us to get the real picture

Part No :

EVQ-PCP05K

Manufacturer
Panasonic
Description
SWITCH TACTILE SPST-NO 0.02A 15V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
EVQ-PCP05K PDF
Availability
1318 pieces
Unit Price
$0.25000

Current price of EVQ-PCP05K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVQ-PCP05K Specifications
Type Description
Series:EVQPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.02A @ 15VDC
Actuator Type:Standard
Mounting Type:Through Hole, Right Angle
Actuator Height off PCB, Vertical:-
Actuator Length, Right Angle:4.75mm
Actuator Orientation:Side Actuated
Termination Style:PC Pin
Outline:7.50mm x 6.95mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:130gf
Ingress Protection:-
Features:-
Operating Temperature:-20°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
