TL6275BA2PQUR

TL6275BA2PQUR

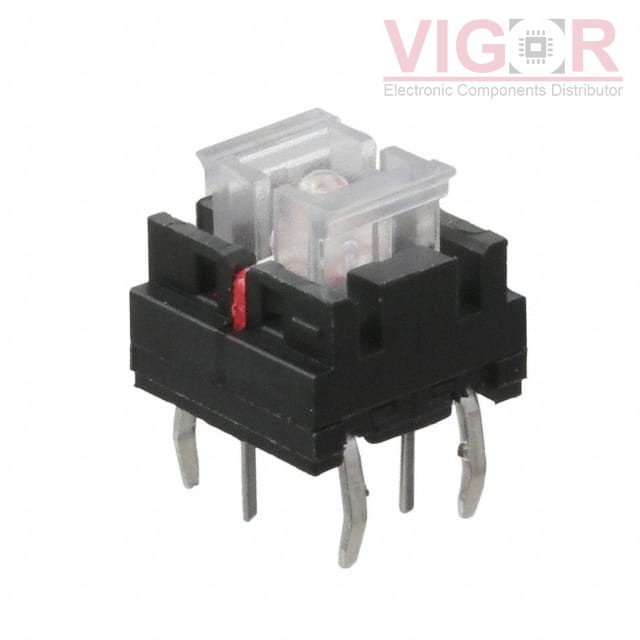

Image is for reference,
please contact us to get the real picture

Part No :

TL6275BA2PQUR

Manufacturer
E-Switch
Description
ILLUMINATED THRU HOLE TACT
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
TL6275BA2PQUR PDF
Availability
796 pieces
Unit Price
$5.12000

Current price of TL6275BA2PQUR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL6275BA2PQUR Specifications
Type Description
Series:TL6275
Package:Tube
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 12VDC
Actuator Type:Round Button
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:16.20mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:8.00mm x 8.00mm
Illumination:Illuminated
Illumination Type, Color:LED, Red
Illumination Voltage (Nominal):-
Operating Force:350gf
Ingress Protection:-
Features:-
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

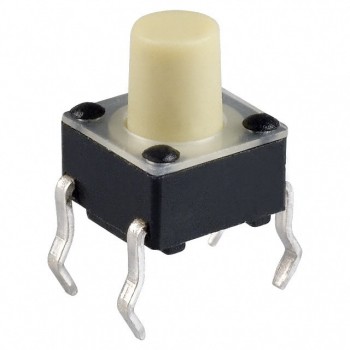

HOT TL1105EF160Q

TL1105EF160Q

SWITCH TACTILE SPST-NO 0.05A 12V

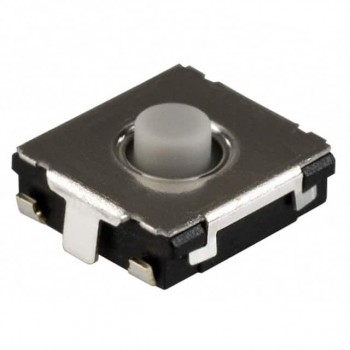

HOT EVQ-P0P02B

EVQ-P0P02B

SWITCH TACTILE SPST-NO 0.02A 15V

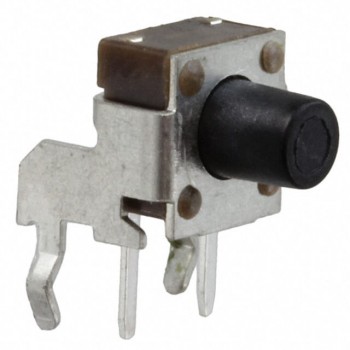

HOT TL1105RF160Q94VO
