S1F

S1F

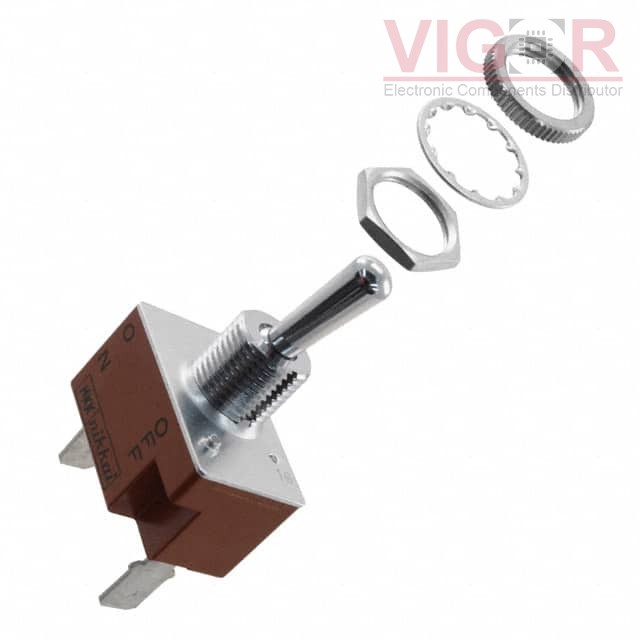

Image is for reference,
please contact us to get the real picture

Part No :

S1F

Manufacturer
NKK Switches
Description
SWITCH TOGGLE SPST 15A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
S1F PDF
Availability
5001019 pieces
Unit Price
$6.01000

Current price of S1F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S1F Specifications
Type Description
Series:S
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:SPST
Switch Function:On-Off
Current Rating (Amps):15A (AC), 20A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Standard Round
Actuator Length:17.50mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:-
Features:-
Operating Temperature:-10°C ~ 70°C
