G22AH

G22AH

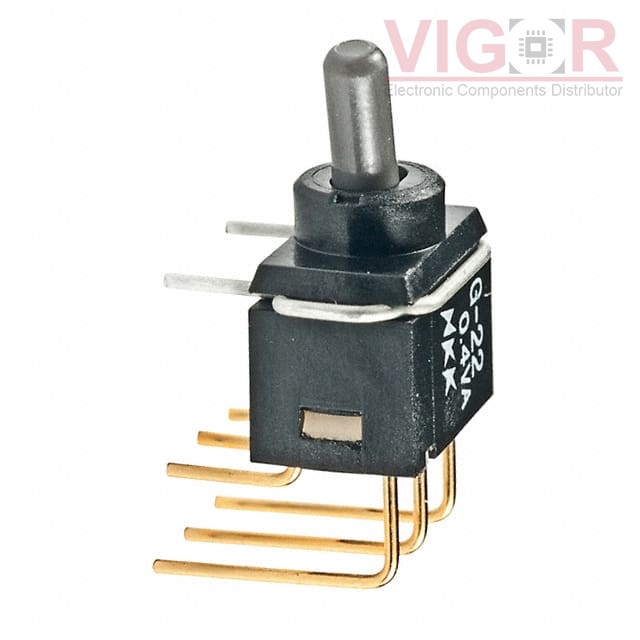

Image is for reference,
please contact us to get the real picture

Part No :

G22AH

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 0.4VA 28V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
G22AH PDF
Availability
20459 pieces
Unit Price
$6.41000

Current price of G22AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G22AH Specifications
Type Description
Series:G
Package:Tray
Part Status:Active
Mounting Type:Through Hole, Right Angle
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):0.4VA (AC/DC)
Voltage Rating - AC:28 V
Voltage Rating - DC:28 V
Actuator Type:Standard Round
Actuator Length:3.80mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:PC Pin
Panel Cutout Dimensions:-
Bushing Thread:Unthreaded
Ingress Protection:-
Features:Process Sealed
Operating Temperature:-25°C ~ 85°C
