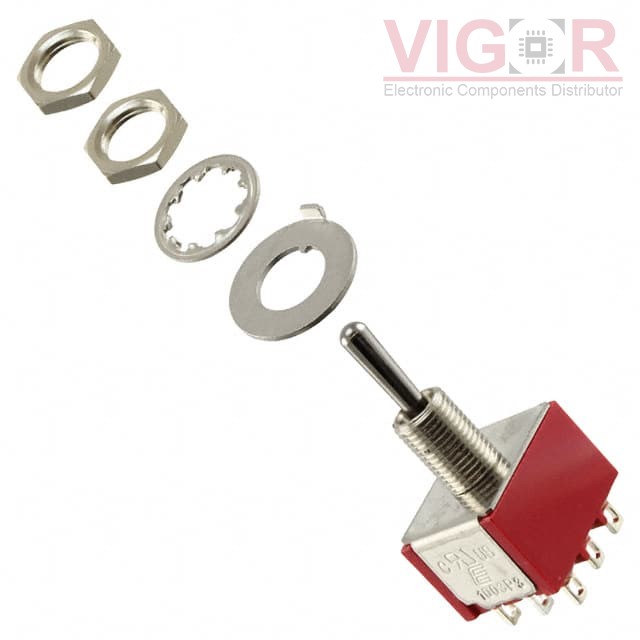

1003P3T1B1M1QEH

1003P3T1B1M1QEH

Image is for reference,
please contact us to get the real picture

Part No :

1003P3T1B1M1QEH

Manufacturer
E-Switch
Description
SWITCH TOGGLE 3PDT 5A 120V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
1003P3T1B1M1QEH PDF
Availability
46 pieces
Unit Price
$5.98000

Current price of 1003P3T1B1M1QEH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1003P3T1B1M1QEH Specifications
Type Description
Series:100
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:3PDT
Switch Function:On-Off-On
Current Rating (Amps):5A (AC/DC)
Voltage Rating - AC:120 V
Voltage Rating - DC:28 V
Actuator Type:Standard Round
Actuator Length:10.41mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 6.35mm Dia
Bushing Thread:1/4-40
Ingress Protection:-
Features:Epoxy Sealed Terminals
Operating Temperature:-30°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7401SD9WQE

7401SD9WQE

SWITCH TOGGLE 4PDT 5A 120V
HOT 100SP3T7B13M1REH

100SP3T7B13M1REH

SWITCH TOGGLE SPDT 0.4VA 20V

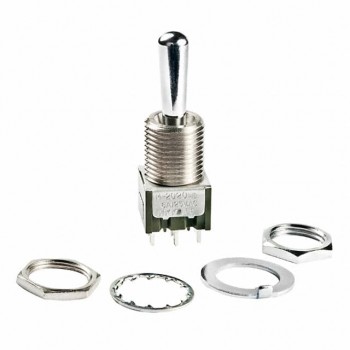

HOT M2024B2B1W01
