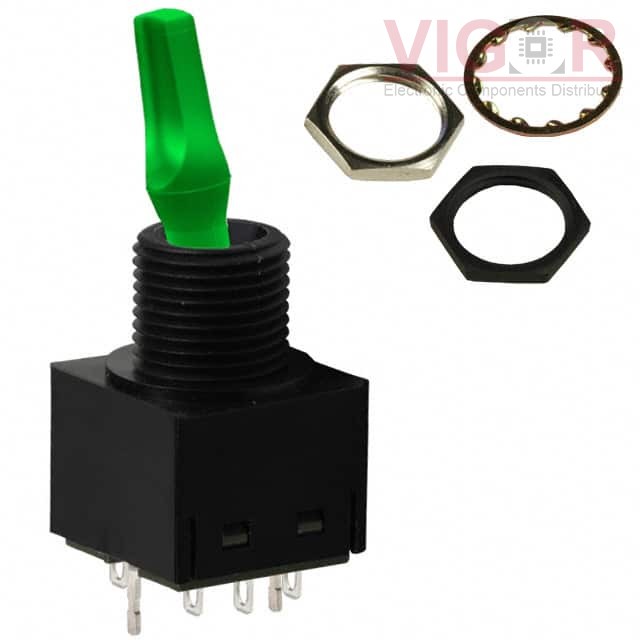

TL22DFAW015F

TL22DFAW015F

Image is for reference,
please contact us to get the real picture

Part No :

TL22DFAW015F

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
TL22DFAW015F PDF
Availability
121 pieces
Unit Price
$12.71000

Current price of TL22DFAW015F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL22DFAW015F Specifications
Type Description
Series:TL
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):6A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:12 V
Actuator Type:Flatted
Actuator Length:17.50mm
Illumination:Illuminated
Illumination Type, Color:LED, Green
Illumination Voltage (Nominal):2.3 VDC
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP65 - Dust Tight, Water Resistant
Features:Epoxy Sealed Terminals
Operating Temperature:-10°C ~ 55°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ATE2D-5M3-10-Z

ATE2D-5M3-10-Z

SWITCH TOGGLE DPDT 50MA 48V

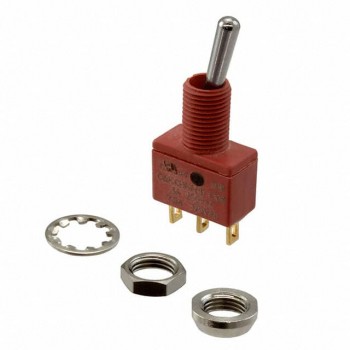

HOT E108SYZQE

E108SYZQE

SWITCH TOGGLE SPDT 7.5A 125V

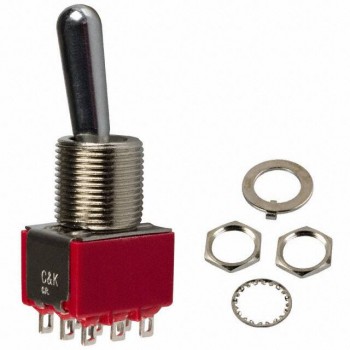

HOT 7301T1CWZQE
