TL22DDAW015D

TL22DDAW015D

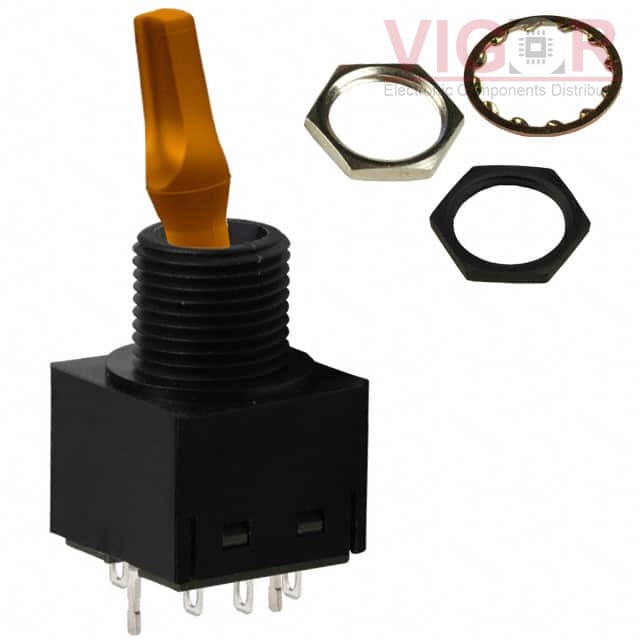

Image is for reference,
please contact us to get the real picture

Part No :

TL22DDAW015D

Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Catalog
Toggle Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
TL22DDAW015D PDF
Availability
400 pieces
Unit Price
$11.00000

Current price of TL22DDAW015D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL22DDAW015D Specifications
Type Description
Series:TL
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):6A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:12 V
Actuator Type:Flatted
Actuator Length:17.50mm
Illumination:Illuminated
Illumination Type, Color:LED, Amber
Illumination Voltage (Nominal):2.1 VDC
Termination Style:Solder Lug
Panel Cutout Dimensions:Circular - 12.50mm Dia
Bushing Thread:M12 x 1
Ingress Protection:IP65 - Dust Tight, Water Resistant
Features:Epoxy Sealed Terminals
Operating Temperature:-10°C ~ 55°C
