106S

106S

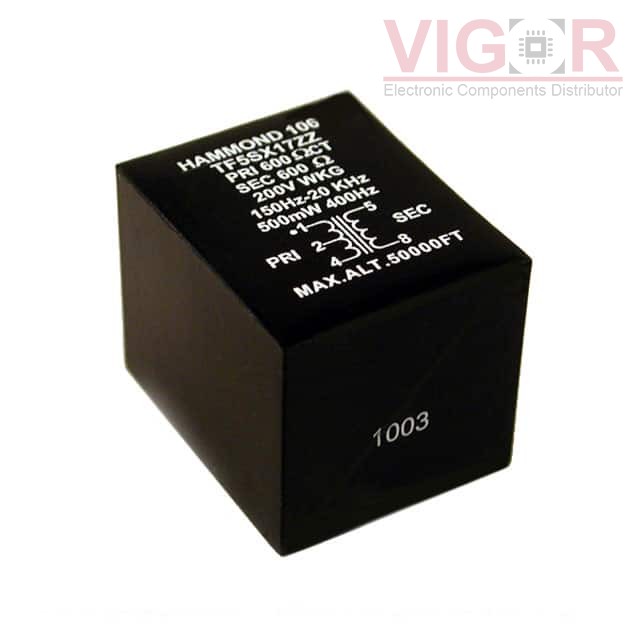

Image is for reference,
please contact us to get the real picture

Part No :

106S

Manufacturer
Hammond Manufacturing
Description
TRANSFORMER AUDIO 100CT/3.2
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
106S PDF
Availability
14 pieces
Unit Price
$27.34000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 106S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

106S Specifications
Type Description
Series:106
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):100CT
Impedance - Secondary (Ohms):3.2
DC Resistance (DCR) - Primary:4.4Ohm
DC Resistance (DCR) - Secondary:300mOhm
Transformer Type:Miniature Epoxy Potted
Frequency Range:170Hz
Frequency Response:-1dB
Voltage - Isolation:200V
Insertion Loss:1dB
Return Loss:-
Power Level:1.5W
Operating Temperature:-
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.080" L x 0.880" W (27.43mm x 22.35mm)
Height - Seated (Max):0.950" (24.13mm)
Termination Style:PC Pin
