5-2337826-1

5-2337826-1

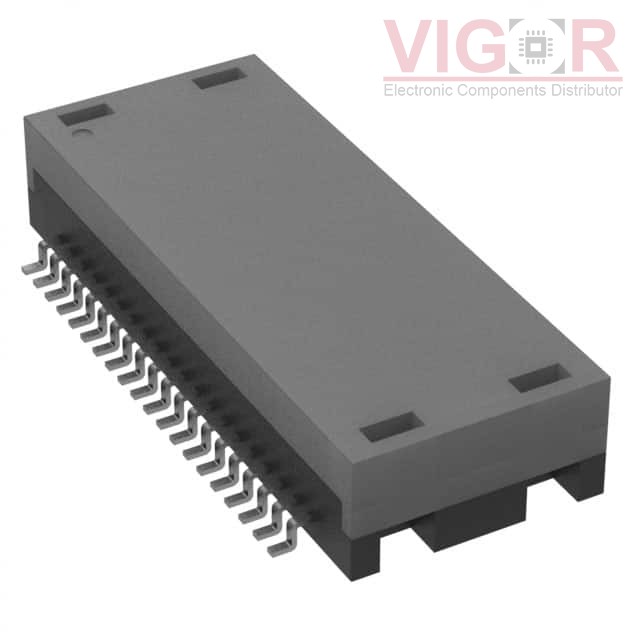

Image is for reference,
please contact us to get the real picture

Part No :

5-2337826-1

Manufacturer
TE Connectivity AMP Connectors
Description
DISCRETE ETHERNET MAGNETICS QUAD
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
5-2337826-1 PDF
Availability
0 pieces
Unit Price
$7.12500

Current price of 5-2337826-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5-2337826-1 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Turns Ratio - Primary:Secondary:1CT:1CT
Impedance - Primary (Ohms):-
Impedance - Secondary (Ohms):-
DC Resistance (DCR) - Primary:-
DC Resistance (DCR) - Secondary:-
Transformer Type:-
Frequency Range:-
Frequency Response:-
Voltage - Isolation:1500Vrms
Insertion Loss:-1dB Max @ 100kHz ~ 100MHz
Return Loss:-18dB Min @ 1MHz ~ 30MHz
Power Level:-
Operating Temperature:-40°C ~ 105°C
Approval Agency:-
Mounting Type:Surface Mount
Size / Dimension:1.232" L x 0.482" W (31.30mm x 12.25mm)
Height - Seated (Max):0.285" (7.24mm)
Termination Style:Gull Wing
