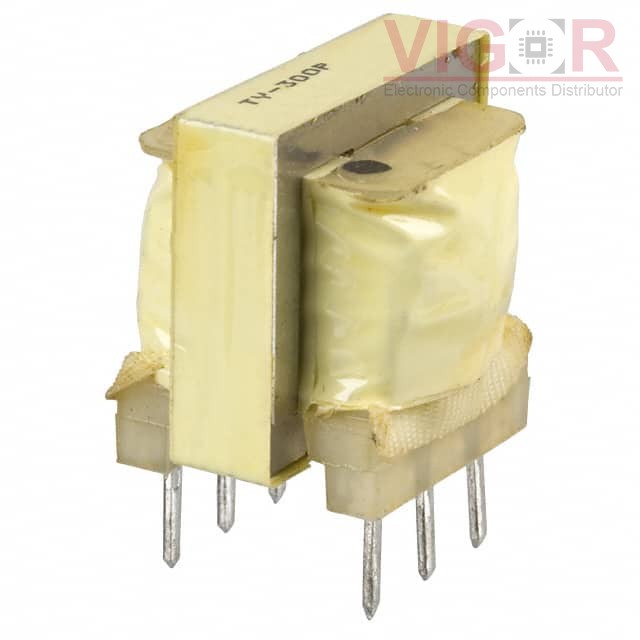

TY-300P-B

TY-300P-B

Image is for reference,
please contact us to get the real picture

Part No :

TY-300P-B

Manufacturer
Triad Magnetics
Description
TRANSF 600 OHM 0MA DC TEL HYBRID
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TY-300P-B PDF
Availability
0 pieces
Unit Price
$3.59600

Current price of TY-300P-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-300P-B Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:2.48
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600/600
DC Resistance (DCR) - Primary:172Ohm
DC Resistance (DCR) - Secondary:66Ohm, 66Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:-
Voltage - Isolation:1500VAC
Insertion Loss:0.8dB Typ
Return Loss:30dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.812" L x 0.700" W (20.62mm x 17.78mm)
Height - Seated (Max):0.740" (18.80mm)
Termination Style:PC Pin
