144F

144F

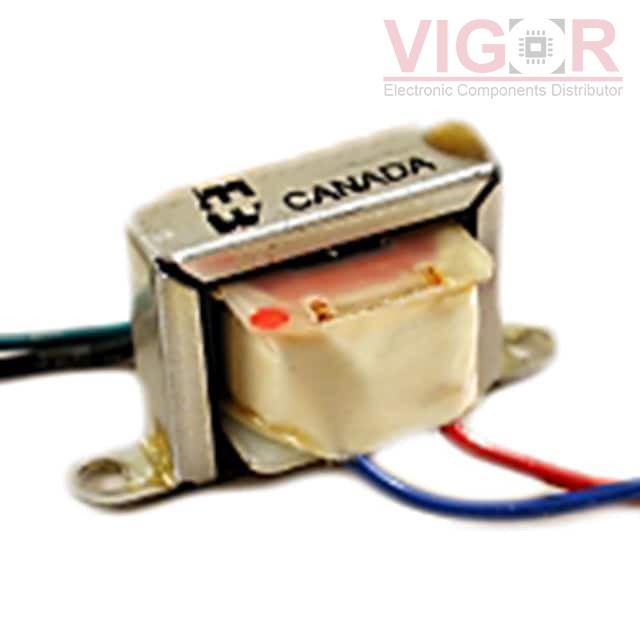

Image is for reference,
please contact us to get the real picture

Part No :

144F

Manufacturer
Hammond Manufacturing
Description
TRANSFORMER AUDIO 500CT/3.2 IMP
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
144F PDF
Availability
4 pieces
Unit Price
$20.55000

Current price of 144F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

144F Specifications
Type Description
Series:144
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):500CT
Impedance - Secondary (Ohms):3.2
DC Resistance (DCR) - Primary:27Ohm
DC Resistance (DCR) - Secondary:330mOhm
Transformer Type:Economical Open Type
Frequency Range:150Hz ~ 15kHz
Frequency Response:±1dB
Voltage - Isolation:-
Insertion Loss:-
Return Loss:-
Power Level:150mW
Operating Temperature:-
Approval Agency:-
Mounting Type:Chassis Mount
Size / Dimension:1.000" L x 0.690" W (25.40mm x 17.53mm)
Height - Seated (Max):0.690" (17.53mm)
Termination Style:Wire Leads
