SP-50-B

SP-50-B

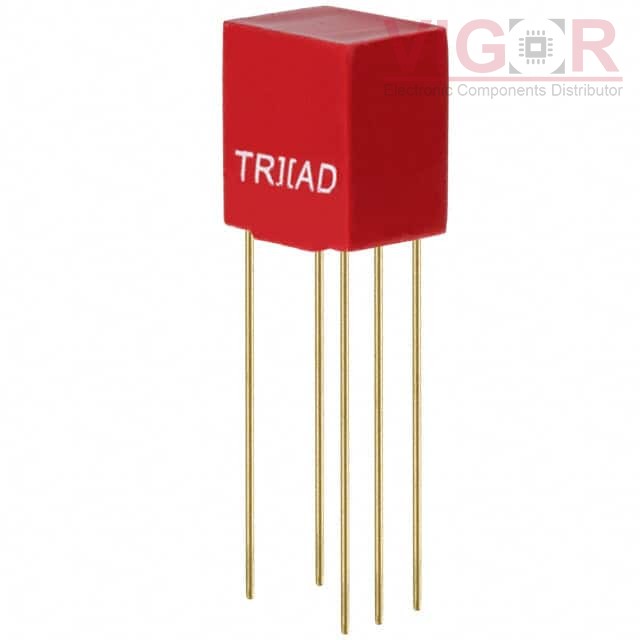

Image is for reference,
please contact us to get the real picture

Part No :

SP-50-B

Manufacturer
Triad Magnetics
Description
TRANSER 500 CT/ 600 OHM AUDIO
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SP-50-B PDF
Availability
0 pieces
Unit Price
$10.81290

Current price of SP-50-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SP-50-B Specifications
Type Description
Series:Red-Spec
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1.1
Impedance - Primary (Ohms):500CT
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:67Ohm
DC Resistance (DCR) - Secondary:98Ohm
Transformer Type:Audio Coupling
Frequency Range:300Hz ~ 100kHz
Frequency Response:±2dB
Voltage - Isolation:1000VRMS @ 1 Second
Insertion Loss:-
Return Loss:-
Power Level:50mW
Operating Temperature:-40°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):0.465" (11.80mm)
Termination Style:PC Pin
