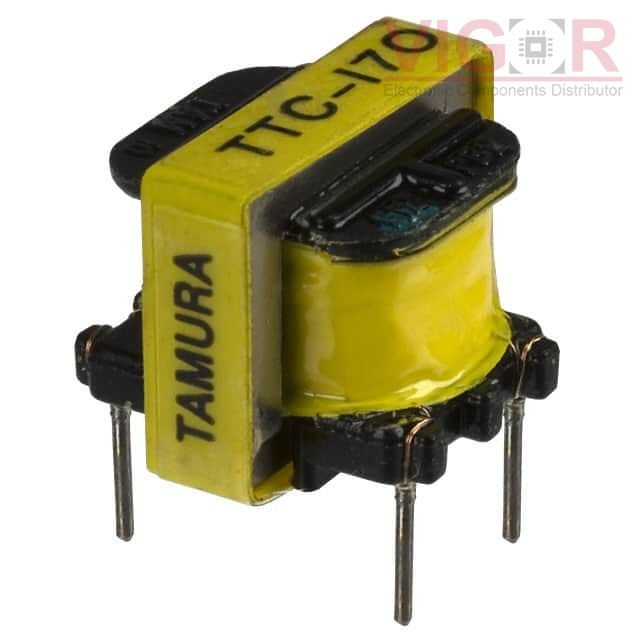

TTC-170

Image is for reference,
please contact us to get the real picture

Part No :: TTC-170

Manufacturer: Tamura

Description: TRANSF TELE COUP 600:600 0MADC

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TTC-170 PDF

Availability: 0 pieces

Unit Price: ~~$7.30000~~

Current price of TTC-170 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-170 Specifications

Type	Description
Series:	TTC
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	600
DC Resistance (DCR) - Primary:	47Ohm
DC Resistance (DCR) - Secondary:	61Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	±0.5dB
Voltage - Isolation:	1500VRMS @ 1 Minute
Insertion Loss:	1.5dB Max @ 1kHz
Return Loss:	-
Power Level:	-
Operating Temperature:	0°C ~ 70°C
Approval Agency:	CSA-C22.2 No. 66-M1988, UL1459
Mounting Type:	Through Hole
Size / Dimension:	0.528" L x 0.512" W (13.40mm x 13.00mm)
Height - Seated (Max):	0.421" (10.70mm)
Termination Style:	PC Pin
