560L

560L

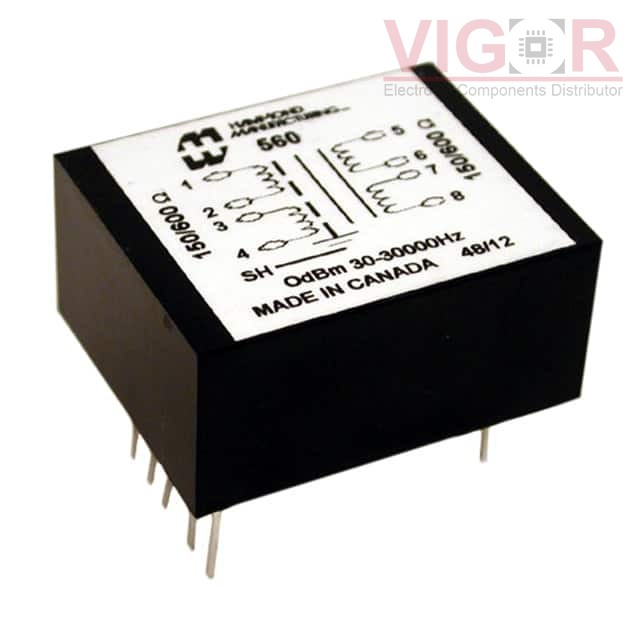

Image is for reference,
please contact us to get the real picture

Part No :

560L

Manufacturer
Hammond Manufacturing
Description
TRANSFR AUDIO 150/600 5K/20K IMP
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
560L PDF
Availability
16 pieces
Unit Price
$54.51000

Current price of 560L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

560L Specifications
Type Description
Series:560
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):600, 150/150
Impedance - Secondary (Ohms):20k, 5k/5k
DC Resistance (DCR) - Primary:-
DC Resistance (DCR) - Secondary:-
Transformer Type:Broadcast Quality
Frequency Range:30Hz ~ 30kHz
Frequency Response:±1dB
Voltage - Isolation:-
Insertion Loss:1dB Max
Return Loss:-
Power Level:-
Operating Temperature:-
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.330" L x 1.640" W (33.78mm x 41.66mm)
Height - Seated (Max):0.850" (21.59mm)
Termination Style:PC Pin
