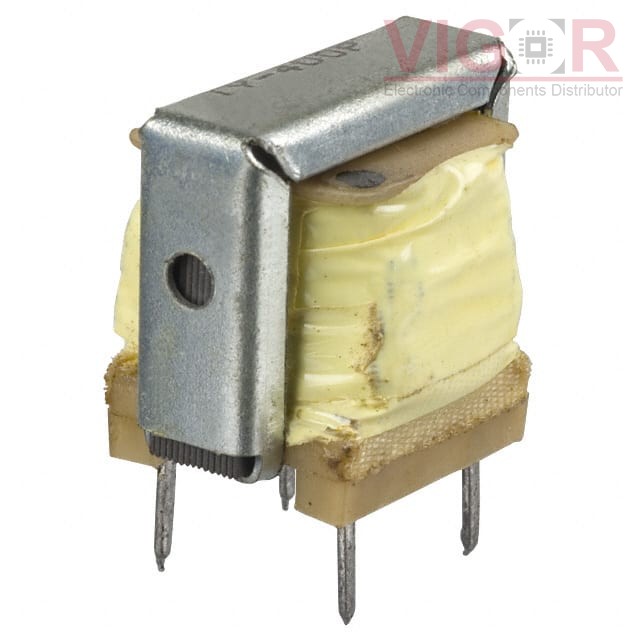

TY-400P

Image is for reference,
please contact us to get the real picture

Part No :: TY-400P

Manufacturer: Triad Magnetics

Description: TRANSF 600 OHM 90MA DC TEL

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TY-400P PDF

Availability: 78546084 pieces

Unit Price: ~~$5.25000~~

Current price of TY-400P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-400P Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1:1.07
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	600
DC Resistance (DCR) - Primary:	76.5Ohm
DC Resistance (DCR) - Secondary:	108Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	±0.5dB
Voltage - Isolation:	1500VAC
Insertion Loss:	1.75dB Typ
Return Loss:	15dB Typ
Power Level:	-45dB ~ 7dB
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.820" L x 0.715" W (20.83mm x 18.16mm)
Height - Seated (Max):	0.750" (19.05mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

1750H

TRANSFORMER TUBE GUITAR AMP

HOT

106Q

TRANSFORMER AUDIO 48CT/3.2

HOT

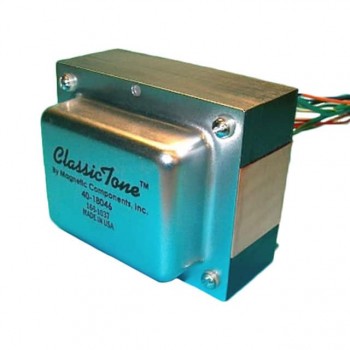

40-18046
