SP-22-B

SP-22-B

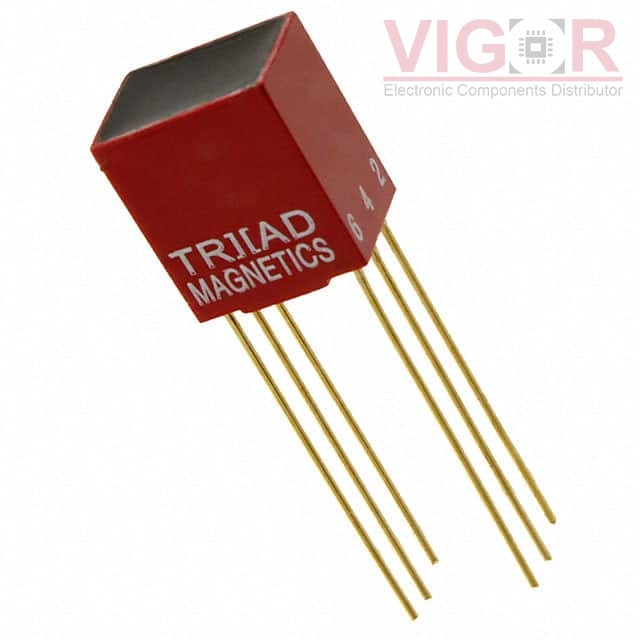

Image is for reference,
please contact us to get the real picture

Part No :

SP-22-B

Manufacturer
Triad Magnetics
Description
TRANSF 10K/2KCT 500 SPLIT SEC AU
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SP-22-B PDF
Availability
0 pieces
Unit Price
$10.00161

Current price of SP-22-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SP-22-B Specifications
Type Description
Series:Red-Spec
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:4.48:1:1
Impedance - Primary (Ohms):10k
Impedance - Secondary (Ohms):2k, 500/500
DC Resistance (DCR) - Primary:1.05kOhm
DC Resistance (DCR) - Secondary:146/168Ohm
Transformer Type:Audio Coupling
Frequency Range:300Hz ~ 100kHz
Frequency Response:±2dB
Voltage - Isolation:1000VRMS @ 1 Second
Insertion Loss:-
Return Loss:-
Power Level:50mW
Operating Temperature:-40°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):0.465" (11.80mm)
Termination Style:PC Pin
