1609A

1609A

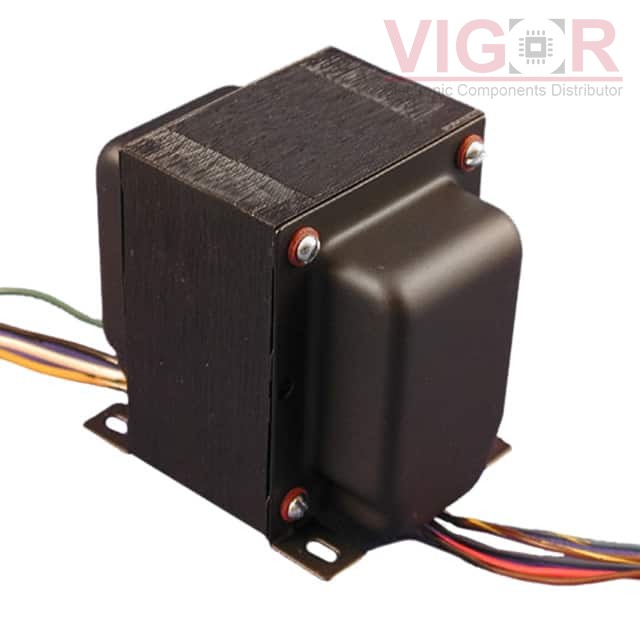

Image is for reference,
please contact us to get the real picture

Part No :

1609A

Manufacturer
Hammond Manufacturing
Description
AUDIOPHILE TUBE OUTPUT TRANSFRMR
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
1609A PDF
Availability
4 pieces
Unit Price
$96.51000

Current price of 1609A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1609A Specifications
Type Description
Series:A
Package:Box
Part Status:Active
Turns Ratio - Primary:Secondary:-
Impedance - Primary (Ohms):10kCT
Impedance - Secondary (Ohms):4, 8, 16
DC Resistance (DCR) - Primary:102.2Ohm, 114.3Ohm
DC Resistance (DCR) - Secondary:321mOhm, 365mOhm, 476mOhm
Transformer Type:Push-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range:30Hz ~ 30kHz
Frequency Response:±1dB
Voltage - Isolation:2000V @ 1 Second
Insertion Loss:-
Return Loss:-
Power Level:10W
Operating Temperature:-
Approval Agency:-
Mounting Type:Chassis Mount
Size / Dimension:2.750" L x 2.500" W (69.85mm x 63.50mm)
Height - Seated (Max):3.060" (77.72mm)
Termination Style:Wire Leads
