109G

109G

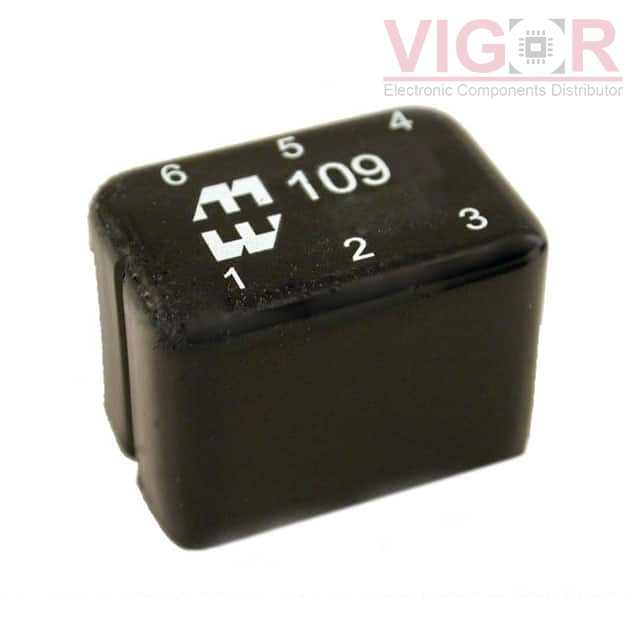

Image is for reference,
please contact us to get the real picture

Part No :

109G

Manufacturer
Hammond Manufacturing
Description
TRANSFORMER AUDIO 600CT/250CT
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
109G PDF
Availability
2 pieces
Unit Price
$27.34000

Current price of 109G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

109G Specifications
Type Description
Series:109
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1.55:1
Impedance - Primary (Ohms):600CT
Impedance - Secondary (Ohms):250CT
DC Resistance (DCR) - Primary:40Ohm
DC Resistance (DCR) - Secondary:24Ohm
Transformer Type:Miniature Epoxy Potted
Frequency Range:300Hz ~ 50kHz
Frequency Response:±1.5dB
Voltage - Isolation:100VRMS
Insertion Loss:-
Return Loss:-
Power Level:2W
Operating Temperature:-
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.315" L x 0.930" W (33.40mm x 23.62mm)
Height - Seated (Max):0.920" (23.37mm)
Termination Style:PC Pin
