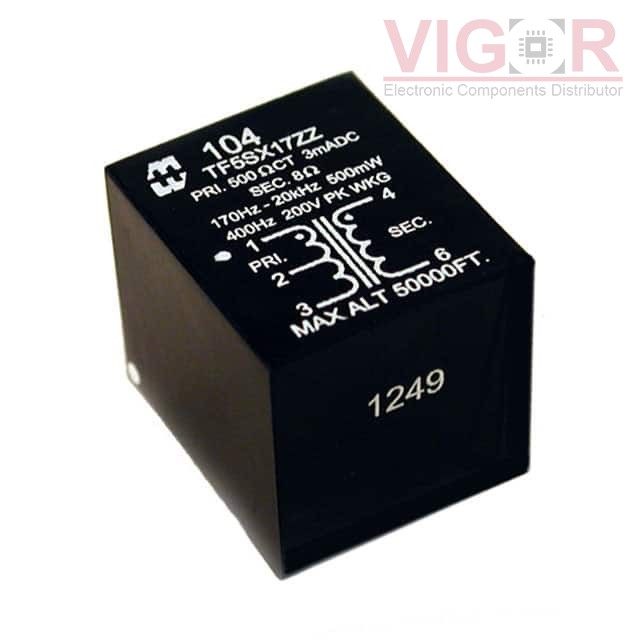

104R

Image is for reference,
please contact us to get the real picture

Part No :: 104R

Manufacturer: Hammond Manufacturing

Description: TRANSFORMER AUDIO 500CT/8

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: 104R PDF

Availability: 12 pieces

Unit Price: ~~$25.52000~~

Current price of 104R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

104R Specifications

Type	Description
Series:	104
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	-
Impedance - Primary (Ohms):	500CT
Impedance - Secondary (Ohms):	8
DC Resistance (DCR) - Primary:	27Ohm
DC Resistance (DCR) - Secondary:	900mOhm
Transformer Type:	Miniature Epoxy Potted
Frequency Range:	200Hz
Frequency Response:	-1dB
Voltage - Isolation:	200V
Insertion Loss:	1dB
Return Loss:	-
Power Level:	500mW
Operating Temperature:	-
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.860" L x 0.710" W (21.84mm x 18.03mm)
Height - Seated (Max):	0.750" (19.05mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
