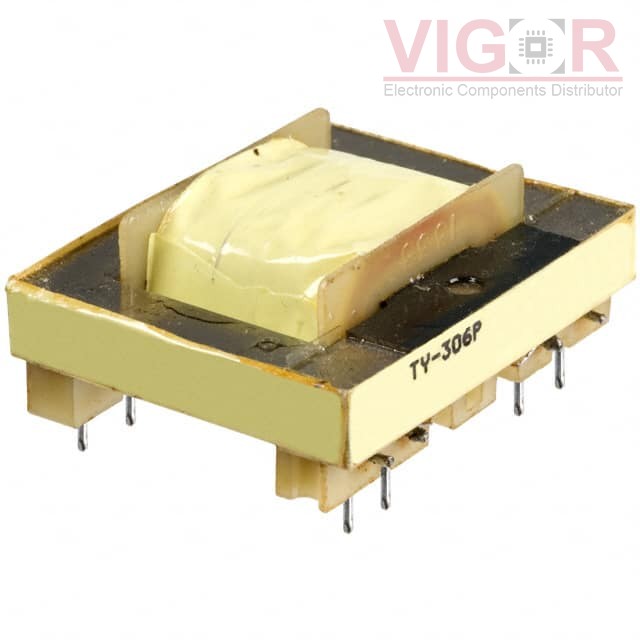

TY-306P

TY-306P

Image is for reference,
please contact us to get the real picture

Part No :

TY-306P

Manufacturer
Triad Magnetics
Description
TRANSF 600 SPLIT PRI .75MA DC TE
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
TY-306P PDF
Availability
730 pieces
Unit Price
$18.62000

Current price of TY-306P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TY-306P Specifications
Type Description
Series:TY
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600, 150/150
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:31Ohm, 31Ohm
DC Resistance (DCR) - Secondary:108Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VAC
Insertion Loss:1.5dB Typ
Return Loss:10dB Typ
Power Level:-45dB ~ 7dB
Operating Temperature:-20°C ~ 85°C
Approval Agency:-
Mounting Type:Through Hole
Size / Dimension:1.650" L x 1.375" W (41.91mm x 34.93mm)
Height - Seated (Max):0.680" (17.27mm)
Termination Style:PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 40-18080

40-18080

OUTPUT TRANSFORMER # 4018080
HOT 1750J

1750J

TRANSFORMER TUBE GUITAR AMP

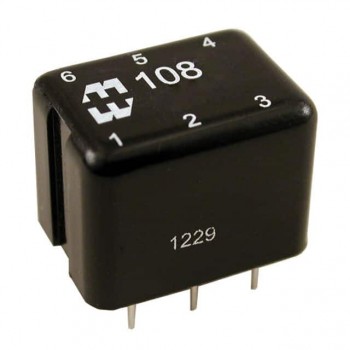

HOT 108L
