TTC-103SL

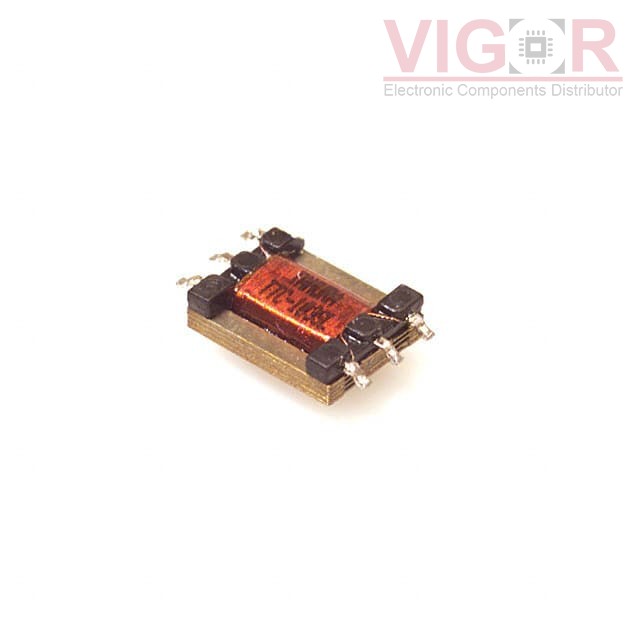

Image is for reference,
please contact us to get the real picture

Part No :: TTC-103SL

Manufacturer: Tamura

Description: TRANSFORMER PCMCIA MODEM

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TTC-103SL PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TTC-103SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-103SL Specifications

Type	Description
Series:	TTC
Package:	Bulk
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	346
DC Resistance (DCR) - Primary:	127Ohm
DC Resistance (DCR) - Secondary:	150Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	-0.35dB ~ 0.15dB
Voltage - Isolation:	1000VRMS @ 1 Minute
Insertion Loss:	2.7dB @ 1kHz
Return Loss:	25dB Min @ 300Hz ~ 3.5kHz
Power Level:	10mW
Operating Temperature:	-
Approval Agency:	CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type:	Surface Mount
Size / Dimension:	0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max):	0.164" (4.16mm)
Termination Style:	Gull Wing
