TTC-5010

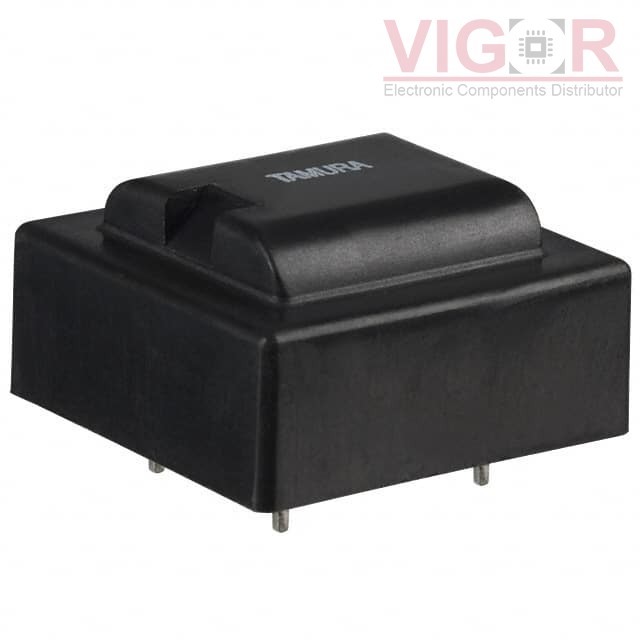

Image is for reference,
please contact us to get the real picture

Part No :: TTC-5010

Manufacturer: Tamura

Description: TRANSFORMER COUPLING 600:301 OHM

Catalog: Audio Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TTC-5010 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TTC-5010 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-5010 Specifications

Type	Description
Series:	TTC
Package:	Bulk
Part Status:	Obsolete
Turns Ratio - Primary:Secondary:	-
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	301
DC Resistance (DCR) - Primary:	-
DC Resistance (DCR) - Secondary:	-
Transformer Type:	Data/Voice Coupling
Frequency Range:	-
Frequency Response:	-
Voltage - Isolation:	-
Insertion Loss:	3.75dB
Return Loss:	-
Power Level:	-
Operating Temperature:	-
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.929" L x 0.976" W (23.60mm x 24.80mm)
Height - Seated (Max):	0.543" (13.80mm)
Termination Style:	PC Pin
