TTC-511

TTC-511

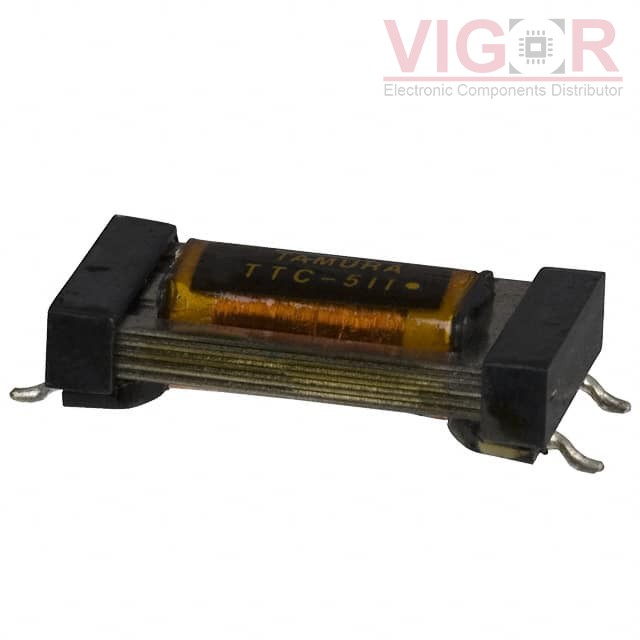

Image is for reference,
please contact us to get the real picture

Part No :

TTC-511

Manufacturer
Tamura
Description
TRANSF TELE COUP 600:287 OHM SMD
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TTC-511 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TTC-511 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-511 Specifications
Type Description
Series:TTC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):287
DC Resistance (DCR) - Primary:150Ohm
DC Resistance (DCR) - Secondary:175Ohm
Transformer Type:-
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.2dB
Voltage - Isolation:1875VRMS @ 1 Second
Insertion Loss:3.8dB Max @ 1kHz
Return Loss:25dB Min @ 300Hz ~ 3.5kHz
Power Level:-
Operating Temperature:-
Approval Agency:UL1950, UL60950
Mounting Type:Surface Mount
Size / Dimension:0.390" L x 0.701" W (9.90mm x 17.80mm)
Height - Seated (Max):0.193" (4.90mm)
Termination Style:Gull Wing
