TTC-203SL

TTC-203SL

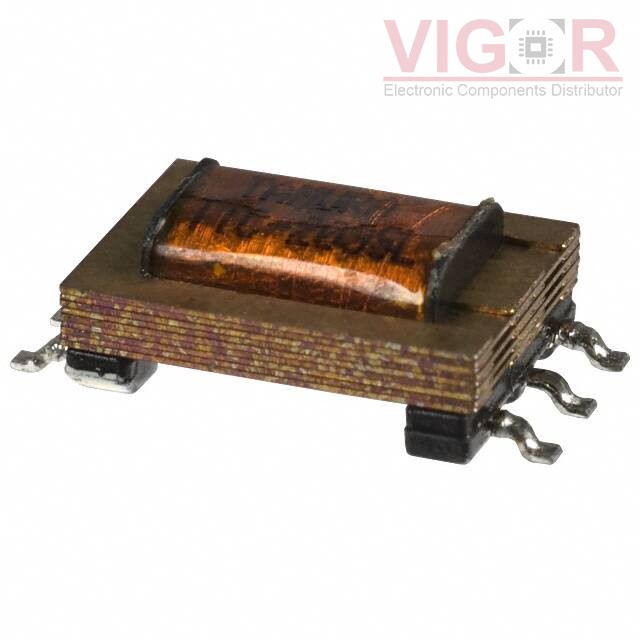

Image is for reference,
please contact us to get the real picture

Part No :

TTC-203SL

Manufacturer
Tamura
Description
TRANSF TELE PCMCIA TOP MNT SMD
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TTC-203SL PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TTC-203SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TTC-203SL Specifications
Type Description
Series:TTC
Package:-
Part Status:Obsolete
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):346
DC Resistance (DCR) - Primary:127Ohm
DC Resistance (DCR) - Secondary:150Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:-0.35dB ~ 0.15dB
Voltage - Isolation:1000VRMS @ 1 Minute
Insertion Loss:2.7dB @ 1kHz
Return Loss:25dB Min @ 300Hz ~ 3.5kHz
Power Level:10mW
Operating Temperature:-
Approval Agency:CSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting Type:Surface Mount
Size / Dimension:0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max):0.164" (4.16mm)
Termination Style:Gull Wing
