54200C

54200C

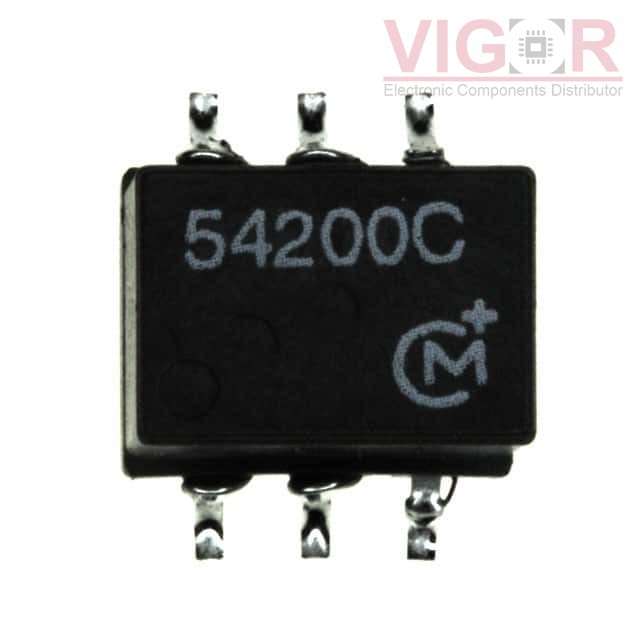

Image is for reference,
please contact us to get the real picture

Part No :

54200C

Manufacturer
Murata Power Solutions
Description
CURR SENSE XFMR 1:1:200 15A SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
54200C PDF
Availability
450 pieces
Unit Price
$1.76000

Current price of 54200C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

54200C Specifications
Type Description
Series:5400
Package:Tape & Reel (TR)
Part Status:Active
Frequency Range:50kHz ~ 500kHz
Type:Invasive
Current Rating (Amps):1:1:200
Inductance:-
ET (Volt-Time):7mOhm Primary, 6.6Ohm Secondary
Turns Ratio - Primary:Secondary:-
Current Ratio:Surface Mount
DC Resistance (DCR):0.354" L x 0.425" W (9.00mm x 10.80mm)
Ratings:0.323" (8.20mm)
Mounting Type:Gull Wing
