CST306-2A

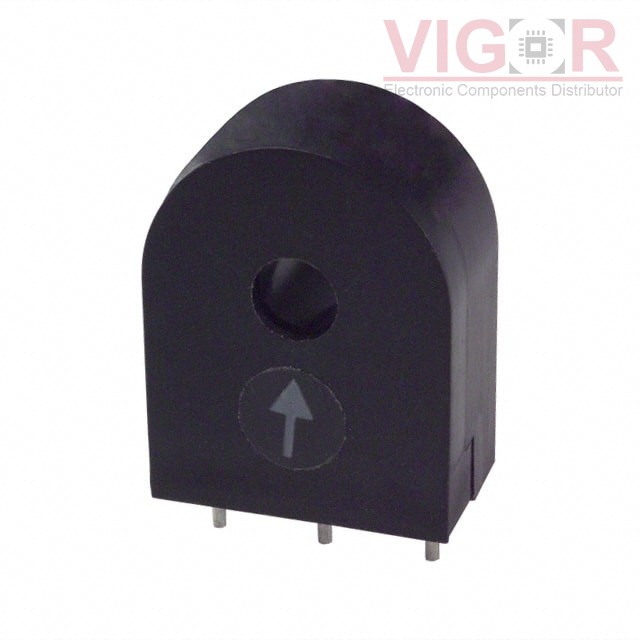

Image is for reference,
please contact us to get the real picture

Part No :: CST306-2A

Manufacturer: Triad Magnetics

Description: CURR SENSE XFMR 25A T/H

Catalog: Current Sense Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: CST306-2A PDF

Availability: 40432614 pieces

Unit Price: ~~$5.65000~~

Current price of CST306-2A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CST306-2A Specifications

Type	Description
Series:	CST
Package:	Bulk
Part Status:	Active
Frequency Range:	20kHz ~ 200kHz
Type:	Non-Invasive (Solid Core)
Current Rating (Amps):	25 A
Inductance:	14 mH
ET (Volt-Time):	1000VµS
Turns Ratio - Primary:Secondary:	-
Current Ratio:	100:1
DC Resistance (DCR):	1.55Ohm Max
Ratings:	-
Mounting Type:	Through Hole
Size / Dimension:	0.690" L x 0.385" W (17.53mm x 9.78mm)
Height - Seated (Max):	0.915" (23.24mm)
Termination Style:	PC Pin
