54100C

54100C

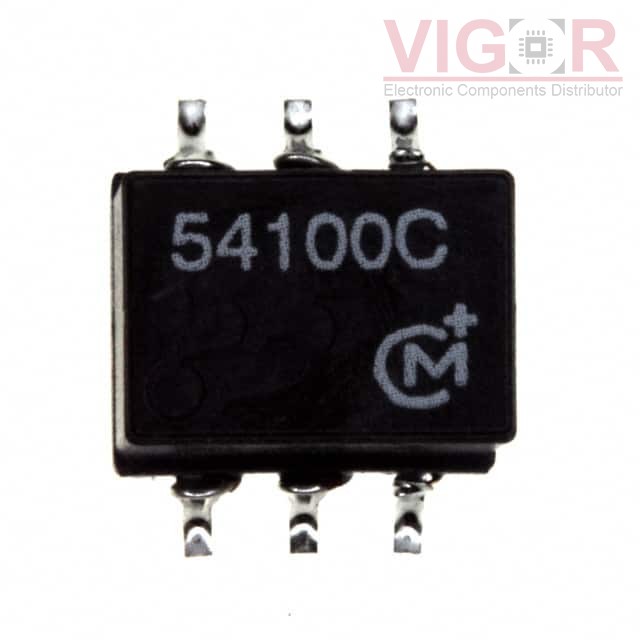

Image is for reference,
please contact us to get the real picture

Part No :

54100C

Manufacturer
Murata Power Solutions
Description
CURR SENSE XFMR 1:1:100 15A SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
54100C PDF
Availability
0 pieces
Unit Price
$1.44000

Current price of 54100C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

54100C Specifications
Type Description
Series:5400
Package:Tape & Reel (TR)
Part Status:Active
Frequency Range:50kHz ~ 500kHz
Type:Invasive
Current Rating (Amps):7mOhm Primary, 3.2Ohm Secondary
Inductance:-
ET (Volt-Time):Surface Mount
Turns Ratio - Primary:Secondary:0.354" L x 0.425" W (9.00mm x 10.80mm)
Current Ratio:0.323" (8.20mm)
DC Resistance (DCR):Gull Wing
