B78419A2271A003

B78419A2271A003

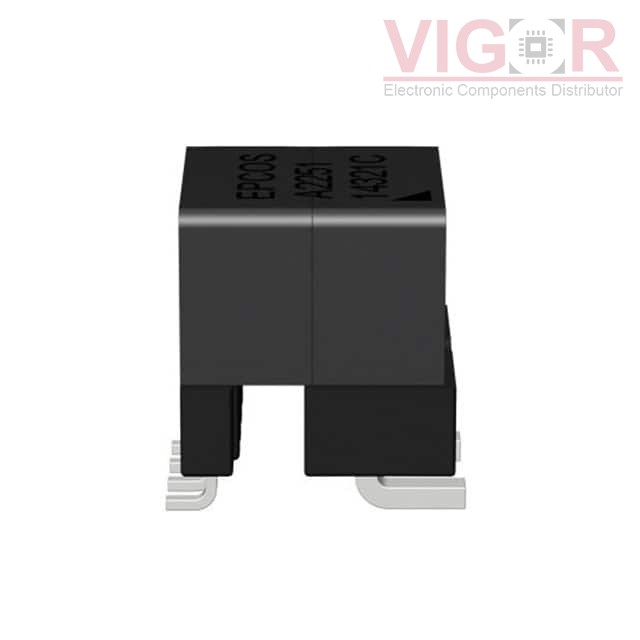

Image is for reference,
please contact us to get the real picture

Part No :

B78419A2271A003

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:180 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 26 - Aug 30 2025
DataSheet
B78419A2271A003 PDF
Availability
6 pieces
Unit Price
$6.50000

Current price of B78419A2271A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78419A2271A003 Specifications
Type Description
Series:B78419
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 250kHz
Type:Invasive
Current Rating (Amps):-
Inductance:0.5mOhm Primary, 7.4Ohm Secondary
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:Surface Mount
Current Ratio:0.504" L x 0.535" W (12.80mm x 13.60mm)
DC Resistance (DCR):0.567" (14.40mm)
Ratings:Gull Wing
