B78419A2251A003

B78419A2251A003

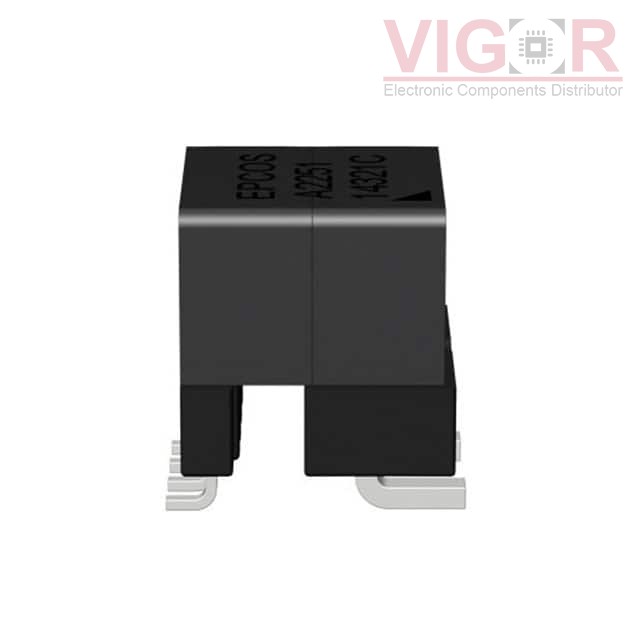

Image is for reference,
please contact us to get the real picture

Part No :

B78419A2251A003

Manufacturer
TDK EPCOS
Description
CURR SENSE XFMR 1:100 SMD
Catalog
Current Sense Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
B78419A2251A003 PDF
Availability
858 pieces
Unit Price
$5.53000

Current price of B78419A2251A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78419A2251A003 Specifications
Type Description
Series:B78419
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:50kHz ~ 250kHz
Type:Invasive
Current Rating (Amps):-
Inductance:1:100
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:0.5mOhm Primary, 3.1Ohm Secondary
Current Ratio:-
DC Resistance (DCR):Surface Mount
Ratings:0.504" L x 0.535" W (12.80mm x 13.60mm)
Mounting Type:0.567" (14.40mm)
Size / Dimension:Gull Wing
