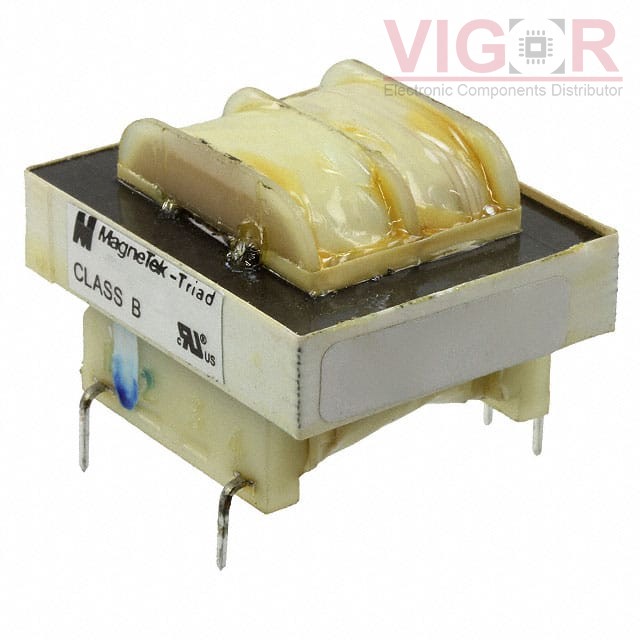

F36-030

F36-030

Image is for reference,
please contact us to get the real picture

Part No :

F36-030

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 1.1VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
F36-030 PDF
Availability
370 pieces
Unit Price
$5.62400

Current price of F36-030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F36-030 Specifications
Type Description
Series:Split Pack™, Class 2/3, F
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 18V, Series 36V
Current - Output (Max):Parallel 60mA, Series 30mA
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:1.1VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:34.93mm L x 28.58mm W
Height - Seated (Max):23.80mm
Voltage - Isolation:2500Vrms
Weight:0.17 lb (77.11 g)
