R8305NL

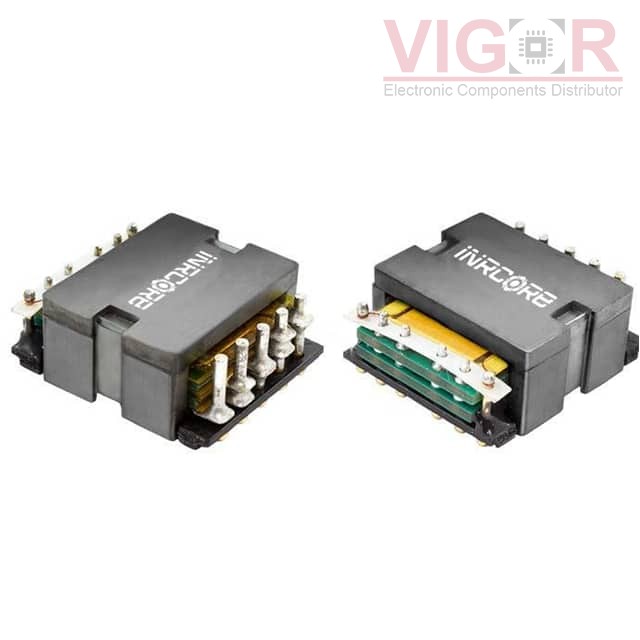

Image is for reference,
please contact us to get the real picture

Part No :

R8305NL

Manufacturer
PulseR (iNRCORE
Description
TRANSFORMER PLANAR 345UH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
R8305NL PDF
Availability
0 pieces
Unit Price
$4.52880

Current price of R8305NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Active
Type:Planar
Voltage - Primary:-
Voltage - Secondary (Full Load):-
Current - Output (Max):-
Primary Winding(s):Dual
Secondary Winding(s):Single, Multiple Taps
Center Tap:No
Power - Max:140W
Mounting Type:Surface Mount
Termination Style:Solder, Quick Connect
Size / Dimension:23.37mm L x 21.59mm W
Height - Seated (Max):8.60mm
Voltage - Isolation:1750VDC
Weight:-
