PL20-24-130B

PL20-24-130B

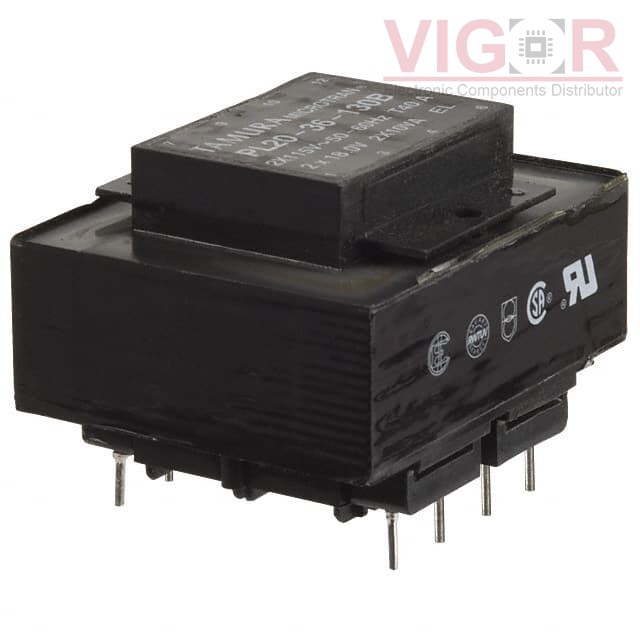

Image is for reference,
please contact us to get the real picture

Part No :

PL20-24-130B

Manufacturer
Tamura
Description
PWR XFMR LAMINATED 20VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
PL20-24-130B PDF
Availability
384 pieces
Unit Price
$15.95000

Current price of PL20-24-130B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PL20-24-130B Specifications
Type Description
Series:PL20-xx-130B
Package:Bulk
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 12V, Series 24V
Current - Output (Max):Parallel 1.66A, Series 830mA
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:20VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:57.20mm L x 47.60mm W
Height - Seated (Max):41.28mm
Voltage - Isolation:3500Vrms
Weight:-
