F-106Z

F-106Z

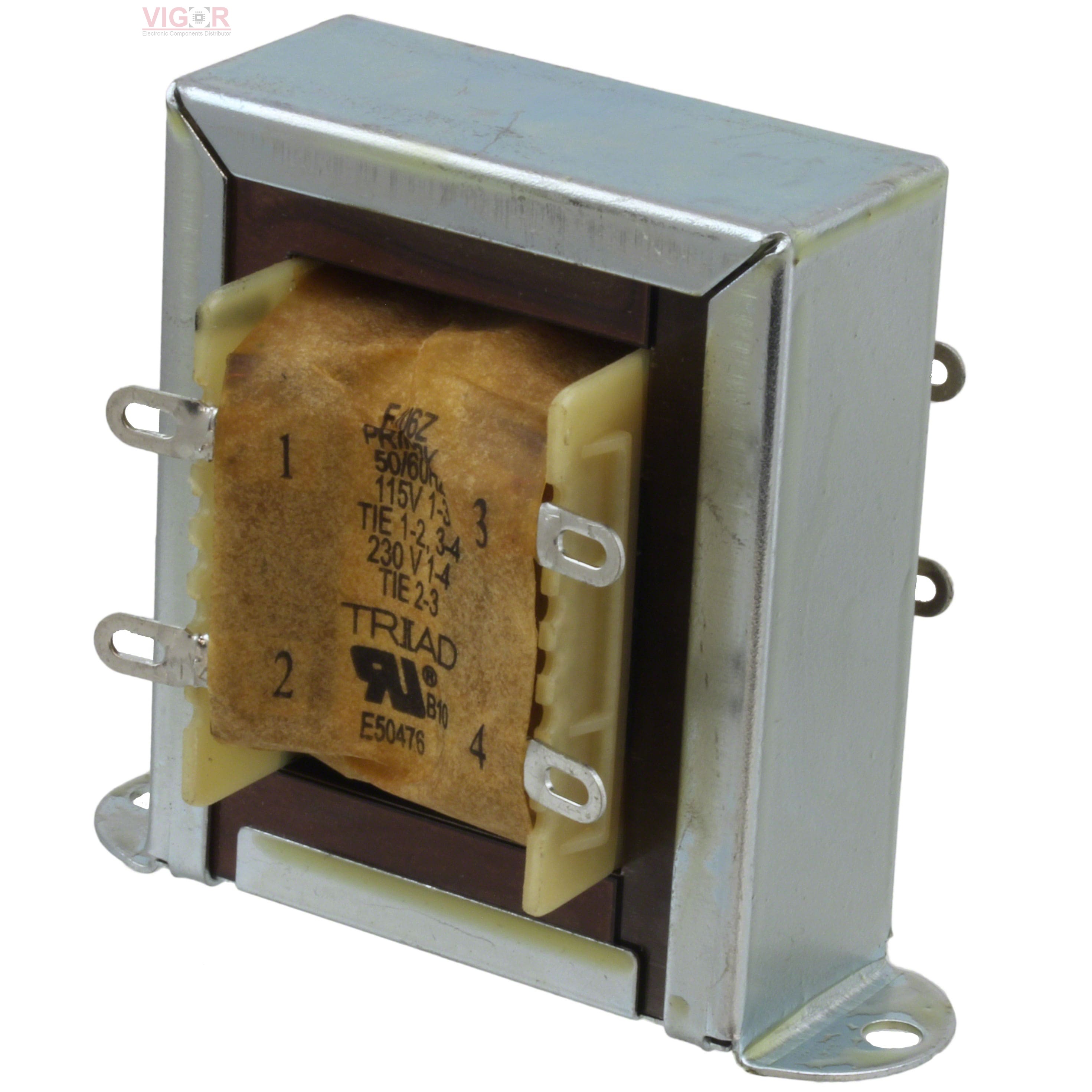

Image is for reference,
please contact us to get the real picture

Part No :

F-106Z

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 24VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
F-106Z PDF
Availability
44 pieces
Unit Price
$15.08813

Current price of F-106Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-106Z Specifications
Type Description
Series:Control Transformers
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 6V, Series 12V
Current - Output (Max):Parallel 4A, Series 2A
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:24VA
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Size / Dimension:79.38mm L x 50.80mm W
Height - Seated (Max):69.85mm
Voltage - Isolation:1500Vrms
Weight:1.5 lbs (680.4 g)
